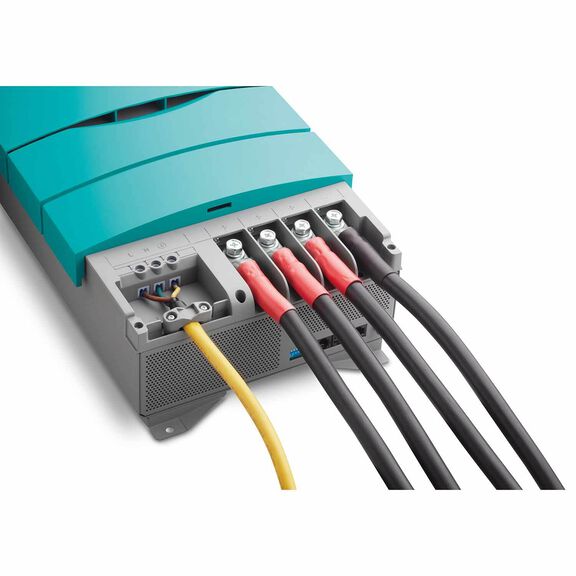

ChargeMaster Plus CZone Battery Charger, 24V, 100 Amp, 2 Banks

ChargeMaster Plus CZone Battery Charger, 24V, 100 Amp, 2 Banks image number null
ChargeMaster Plus CZone Battery Charger, 24V, 100 Amp, 2 Banks image number null
ChargeMaster Plus CZone Battery Charger, 24V, 100 Amp, 2 Banks image number null

ChargeMaster Plus CZone Battery Charger, 24V, 100 Amp, 2 Banks

3.8 out of 5 Customer Rating
-
+
Availability
  • Back Order
Ships from supplier, typically 2-3 weeks.

Vendor Shipping Details

This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.

Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.

West Marine will email you when your order ships from the vendor.

Protect Your Purchase

Add extra coverage from the date of purchase beyond the manufacturer’s warranty. Details

What's Covered?

PLUS adds up to 2 more years of coverage beyond the Manufacturer's Warranty and offers extra coverage from the date of purchase throughout the extended term. PLUS includes:

  • Wear and Tear Coverage
  • Power Surge Protection
  • Exchange for products under $400
  • Onboard service on products over $750
  • Up to 5 years of total coverage

Your PLUS plan goes into effect with your purchase ‐ no registration required. Purchase your PLUS plan online, in stores or by calling 1 (800) 262-8464.

$172.44
$299.49
$2,899.00
This item is currently unavailable.
Enter your email address to be added to the waitlist.
Model # 20245668 Mfg # 44321105
Truck Freight

Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.

Warning Hazard shipping
Item Can only Ship to Store

MASTERVOLT ChargeMaster Plus CZone Battery Charger

ChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges a maximum of three batteries in a fast and safe way and works anywhere in the world.

Battery’s Best Friend
With the Battery’s Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are:

·Revival mode: automatically revives even fully depleted batteries.
·Priority Charge: redirect available power to the lowest battery, for faster charging.
·Smart Input: charge all three batteries from one single alternator for continuous charging on the go.
Global Charging
The ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC and RCM/C-Tick compliant.

System Simplicity
Nowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all three outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.

Powerful Connections
In modern applications, all components work together, the ChargeMaster Plus supports not only MasterBus but also CZone and NMEA. This enables the charger to communicate with displays, shunts and power systems including communication standards like, FireCan, CANopen and many more. The ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.

Features:

  • MasterBus, CZone and NMEA communication
  • Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR
  • Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger
  • Charges multiple batteries while being underway
  • Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 °C
Amperage 110 Amps
Compatibility Flooded, AGM, Gel, Lithium
ISO Approved ISO 8846
Multi Bank Chargers 2 Banks
Type Charger
Voltage 24V DC
Warranty 24 Months (must follow install instructions)
