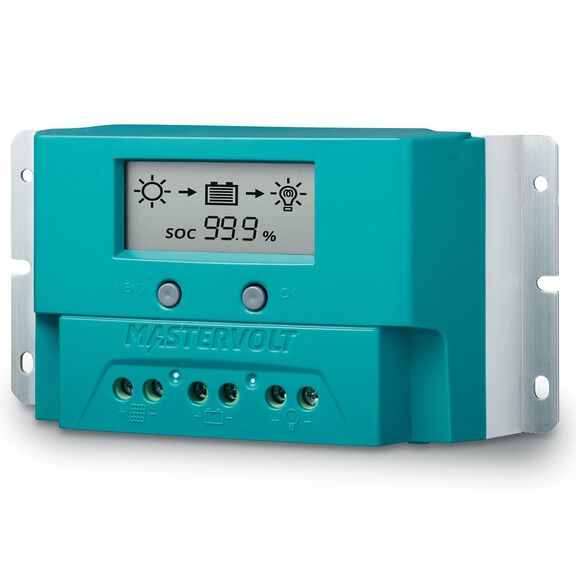

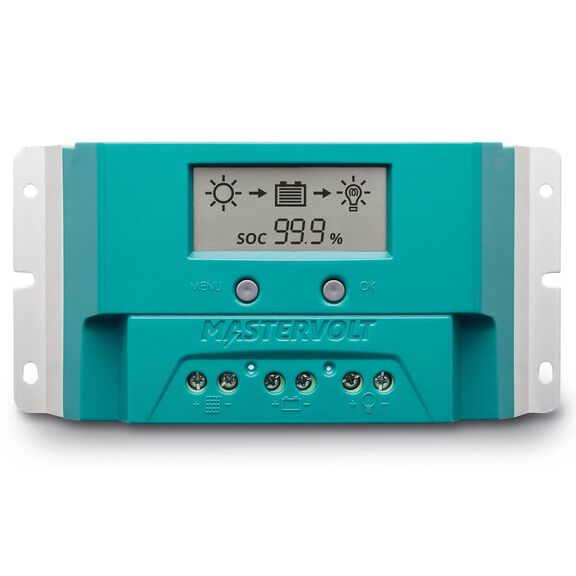

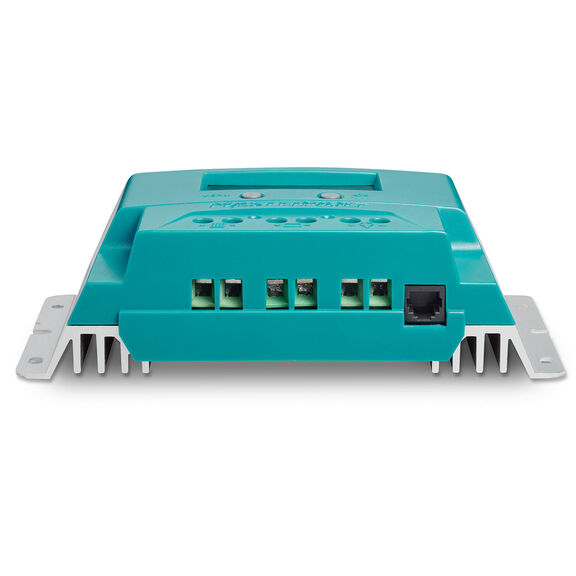

Solar Chargemaster Regulator, SCM40 PWM
Model #
19949494
Mfg #
131824000
$125.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
MASTERVOLT Solar Chargemaster Regulator
This solar charge regulator based on PWM technology is a great solution to charge your batteries with solar energy. Suitable for both 36 cells panels (in 12 V systems) and 72 cells panels (in 24 V systems). Its protection against water spray, suitability for high ambient temperature and compatibility with negative grounding, make it the perfect solar regulator for marine and mobile environments. Optionally, a temperature sensor is available.
Safe, user friendly, and flexible
The SCM20 PWM is suitable for all types of lead-acid batteries in both 12 V and 24 V. The device features a large display and switchable output with evening / night lighting function.
Features:
- System voltage (battery): 12/24V auto select. Nominal charge current: 40A. Switchable output (Max Current): 40A
- Battery types: AGM, Gel, flooded
- Display Readout: backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting
- Protections: over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients. Rated IP23
- Suitable for all types of lead-acid batteries in both 12 V and 24 V
- Features a large display and switchable output with evening / night lighting function
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Amperage
40 Amps @ 12V
Dimensions
3.9" H x 7.4" W x 2.1" D
Warranty
24 Months (must follow install instructions)
