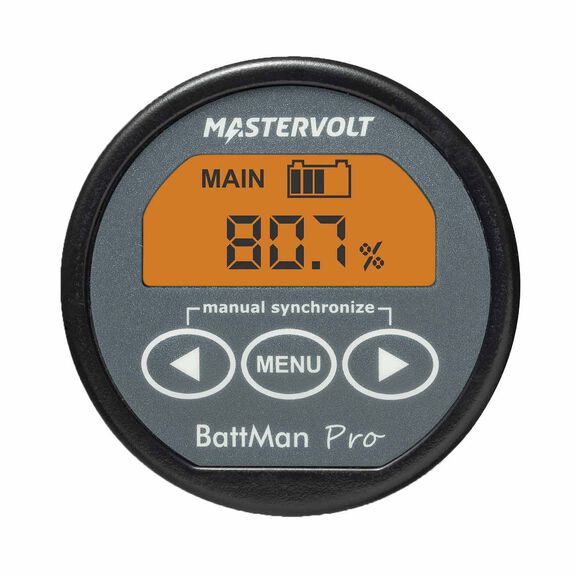

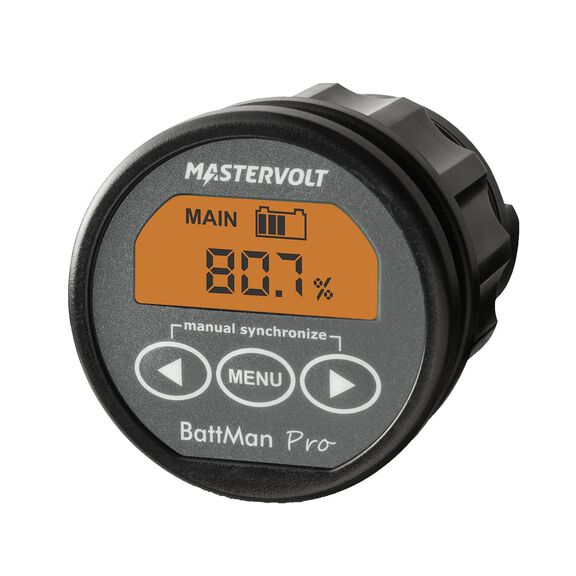

BattMan Pro Battery Monitor
Model #
17979931
Mfg #
70405070
$334.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
BattMan Pro provides critial information about the status of your battery bank.
An affordable battery monitor that does exactly that: providing critical information about the status of your battery bank under all circumstances. Moreover it will warn you when your battery bank is empty. Also displays the remaining time until your battery needs to be charged and stores special battery status events.
Key Features
- Voltage for two batteries; range 9-35V DC
- Amps for one battery; range 0-500A

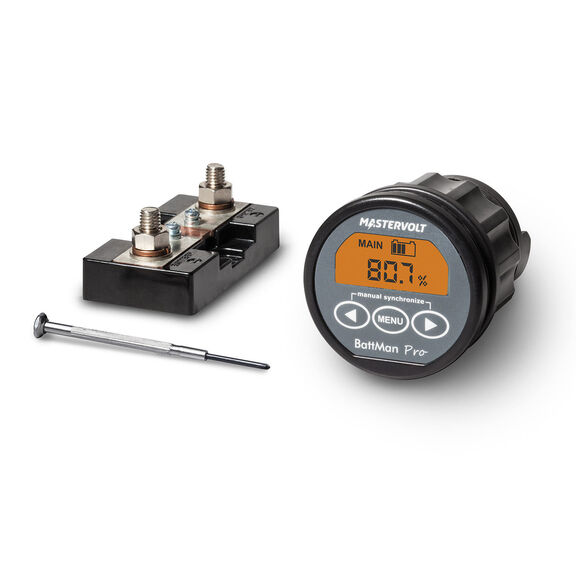

- Includes a 500A shunt
- IP65 waterproof protection rating
- Notifies you when your battery bank is empty
Display Options
- Voltage
- Current
- Amp-hours
- Battery capacity in percent
- Battery capacity in hours
- Special battery status events
Specifications
- Functions: Volts, Amps, Amp hours, time remaining, battery capacity in %, special battery status events;
- Display Type: Multi-function LCD
- Amp Hours: Low range: 0-200Ah (+/- 0.1Ah), High range: 200-9990Ah (+/- 1Ah)
- Amps: Low range: 0-200A (+/- 0.1Ah), High range: 200-9999A (+/- 1Ah)
- Volts: 12V or 24V systems (9-35V supply voltage)
- Mounting Hole Size: 2 1/16"dia. (52mm) to 2 1/8"dia. (54mm)
- Waterproof Rating: IP20 (front panel only: IP65)
- Amperage: 9mA (12V), 7mA (24V)
- Dimensions: Front panel: 2 1/2"dia., Body: 2"dia. x 3 1/8"L
- Warranty: Two years
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Best Use
12 Volt DC Systems
,
24 Volt DC Systems
Dimensions
2 1/2" x 2 1/2" x 3 1/4"
Display Type
Digital; 0 to 35 Volts; 0 to 500 Amps; Plus Battery Life & Capacity
Features
Water Resistant
Type
Battery Monitor
Warranty
Two Years; Covers Defects in Workmanship or Materials
