Electric Sending Unit with Diesel Return Line
Model #
8843559
Mfg #
035724-10
$81.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Electric Sending Unit with Diesel Return Line
Model #
8843559
Mfg #
035724-10
$81.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
This patent-pending design enables integration of the return line found on diesel and some fuel injection engines.
Converting a gasoline tank to diesel use? You'll need a fitting that allows you to connect a fuel return line. This design meets that requirement.

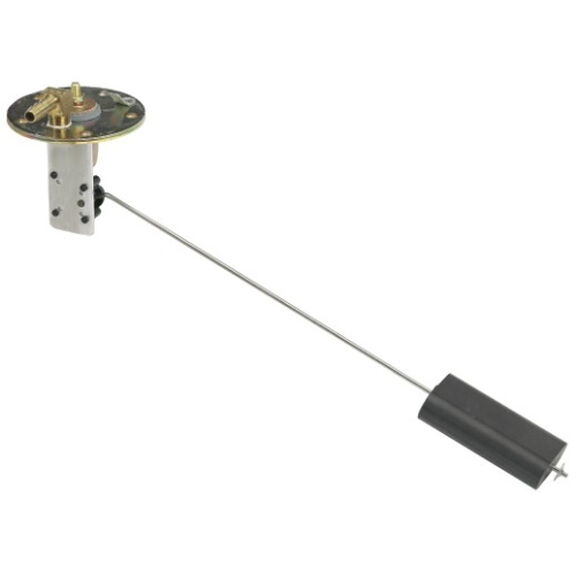

Designed for all types of marine vessels, this Universal Swingarm Electric Sending Unit top-mounts in aluminum, plastic or stainless steel fuel tanks. The all-stainless steel construction resists corrosion and is unaffected by E-10 fuel. The sender gathers fuel level information from a float which is read on a dash-mounted gauge (sold separately).
Key Features
- Includes fuel gauge float, sending unit and 5-hole gasket with screws
- Fits tanks 12" to 24" deep
- Float rotates easily in 90° increments for tank wall and baffle clearance
- All-stainless steel construction
- Internal components will not rust or corrode
- 1/4" female NPT thread with 3/8" barb
- 1/4" ground spade terminal
- Pre-bent 90° float arm
- Calibration to 33-240 ohms
- Dash-mounted gauge sold separately
- Meets or exceeds NMMA and ABYC specifications
- Three-year limited warranty
Cancer and Reproductive WWW.P65Warnings.com
www.P65Warnings.ca.gov
Maximum Depth
Adjustable: 12 to 24 Inches
Type
Sending Units
