This product is not longer available, we recommend a similar product instead:
Clearance

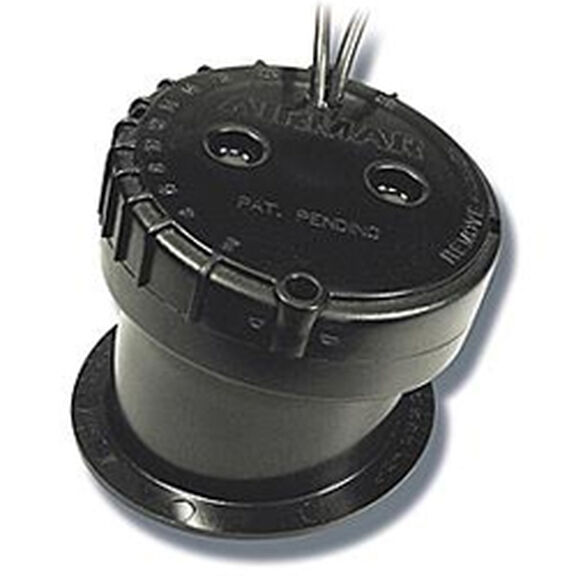

P79 In-hull Dual Frequency Transducer
Model #
11259348
Mfg #
000-0136-03
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
The P79 is a plastic, in-hull dual-frequency, depth sensor.
Recommended for planing-hull powerboats, trailered boats, rigid inflatable boats and racing sailboats. Easily adjusts to hull deadrise angles up to 22°. Base is bonded to the hull and filled with liquid. Transducer attaches to the base with a twist lock.
Installation Steps
- Mount the base flange inside the hull
- Adjust the locking ring for the correct hull deadrise angle
- Fill the base with non-toxic antifreeze (propylene glycol)
- Turn and lock the transducer into the base.
Key Features
- Mounted inside the hull, installation is easy and requires no holes to be drilled in the hull
- Works at 50kHz and 200kHz for good target detail in shallow water and excellent bottom tracking in deep water
- Provides extremely accurate data
- Deadrise adjustment accomodates deadrise angles from 2° to 22°.
- Reduce the risk with this simple "no holes" solution with zero hull protrusions
- Plug and play connection to NSS, NSE or NSO
- Recommended for solid fiberglass hulls
- Epoxies to aluminum hulls under 3.8mm (0.125") thick
- No hull protrusions
Specifications
- Style: In-hull
- Cable Length: 39'
- Monitors: Depth
- Material: Plastic
- Connector: Blue 7-pin
- Frequency: 50/200kHz
- Beamwidth: 45°/12°
- Maximum Depth: 1,000'
- Transmit Power: 600W (RMS)
Type
In-Hull
Beam
12x45 Degrees
Deadrise Angle
0 to 22 Degree
Frequency
50/200kHz
Material
Plastic
Maximum Depth
600 Feet
Sonar
Depth
Transmit Power
600 Watts
Type
In-Hull
