NXR Ultrasonic Speed Thru-Hull Transducer
Model #
14665665
Mfg #
22997
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
NXR Ultrasonic Speed Thru-Hull Transducer
Model #
14665665
Mfg #
22997
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+

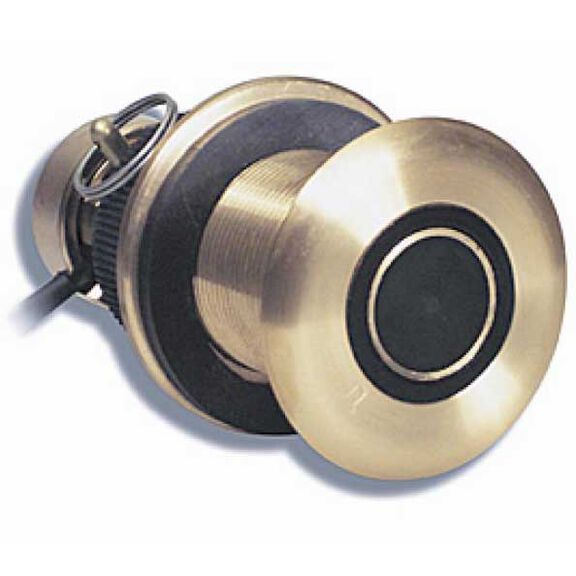

The ultrasonic speed sensor makes cutting edge, high technology speed sensing affordable. Instead of a paddlewheel, it uses two transducers mounted in one compact housing to detect particles in the water and calculates speed based on their distance apart. The transducer reacts instantaneously to changes in boat speed.
Specifications
- Frequency: 4.5 MHz
- Supply Voltage: 10-15 VDC
- Current: 155 ma @ 12 VDC
- Speed Range: 0.1 – 40 knots
- Hole Diameter: 52mm
- Hull Deadrise Angle: Up to 20º
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Type
Thru-Hull
Frequency
4.5 MHz with 5.5kHz Pulse Repetition Frequency
Material
Bronze
Sonar
Trip Log
,
Temperature
Type
Thru-Hull
