10-14 AWG DTP Deutsch Receptacle Repair Kit, 2 Position
Complete Your Purchase
PACER 10-14 AWG DTP Deutsch Receptacle Repair Kit, 2 Position
Pacer's Deutsch DTP series connectors are built to create environmentally sealed connections that can withstand the toughest marine conditions. They are used for both power and signal applications. DTP series connectors are known for their abrasion, impact, and moisture resistance and provide reliability and performance at a low cost.

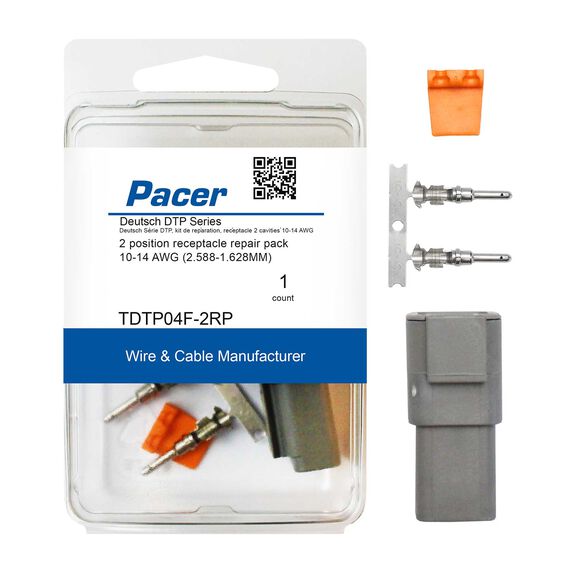

Pacer’s DTP series repair packs have all the parts required to connect or repair a connection. You can combine a receptacle kit and a plug kit to create an environmentally sealed, field serviceable connection. Pacer's DTP series repair packs contain a housing, secondary wedge lock, and the necessary contacts. The included wedge lock is designed to ensure contact alignment and retention. Each repair pack is available in 2, or 4 position combinations. This makes them suitable for multiple marine applications. DTP series connectors provide excellent electrical properties and weather resistance while being easy to install. They are built around the ideas of field serviceability, longevity, and reliability.
Pacer's DTP series repair packs can be found in applications that require a high level of environmental protection coupled with a high level of circuit protection. DTP series connectors are built for use with 14-10 AWG applications and handle size 12 contacts (14-10 AWG). Each circuit can handle 25 amps of continuous power and are rated at 250 volts AC. Pacer's Deutsch repair packs are built to handle operating temperatures ranging from -55°C to 125°C. All Pacer DTP series repair packs meet or exceed IP67 & RoHS compliances.
Key Features
- Environmentally sealed connectors for power and signal applications
- Contains housing, secondary wedge lock and contactts
- 25 continous amp capacity
