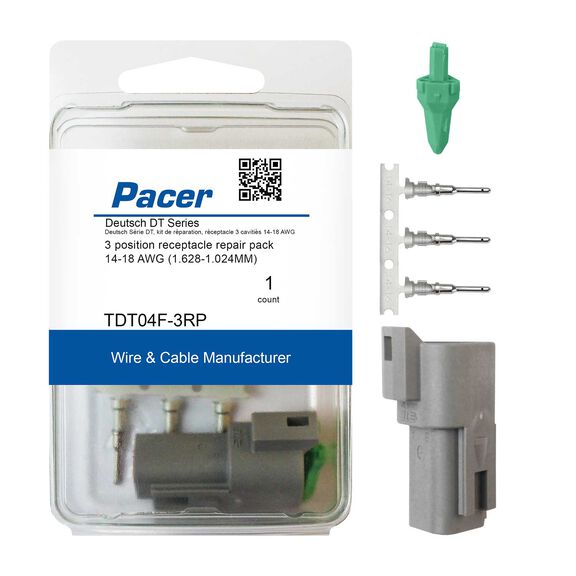

14-18 AWG DT Deutsch Receptacle Repair Kit, 3 Position
Complete Your Purchase
PACER 14-18 AWG DT Deutsch Receptacle Repair Kit
Deutsch DT series are environmentally sealed connectors built for both power and signal applications that must withstand tough environmental conditions. These connectors are known for their abrasion, impact, and moisture resistance. All Deutsch sealed connectors provide reliability and performance at a low cost. Pacer’s DT series repair packs have all the parts required to connect or repair a connection. You can also combine a receptacle kit and a plug kit to create an environmentally sealed, field serviceable connection.
Each Pacer DT series repair pack contains a housing, secondary wedge lock, and all the necessary contacts. The included wedge locks ensure contact alignment and retention. Pacer's repair packs are available in 2, 3, 4, 6, 8, or 12 position combinations making them suitable for nearly any marine application. DT series connectors provide excellent electrical properties and weather resistance while being easy to install. They are built around the ideas of field serviceability, longevity, and reliability.
Pacer's DT series repair packs can be found in applications that require a high level of circuit protection coupled with a high level of environmental protection. DT series connectors are built for use with 20-14 AWG applications and handle size 16 contacts (20-14 AWG). Each circuit can handle 13 amps of continuous power and is rated at 250 volts AC. Pacer's Deutsch repair packs are built to handle operating temperatures ranging from -55°C to 125°C. All our DT series repair packs meet or exceed IP68, RoHS, & UL-94 compliances.
Key Features
- Environmentally sealed connectors for power and signal applications
- Contains housing, secondary wedge lock and contactts
- 13 amp max per circuit
