LED Horizontal Mount Bi-Color Light

Perko LED Horizontal Mount Bi-Color Light

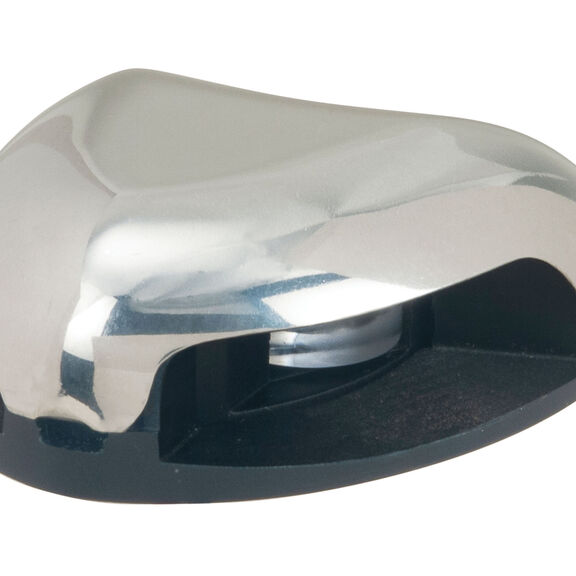

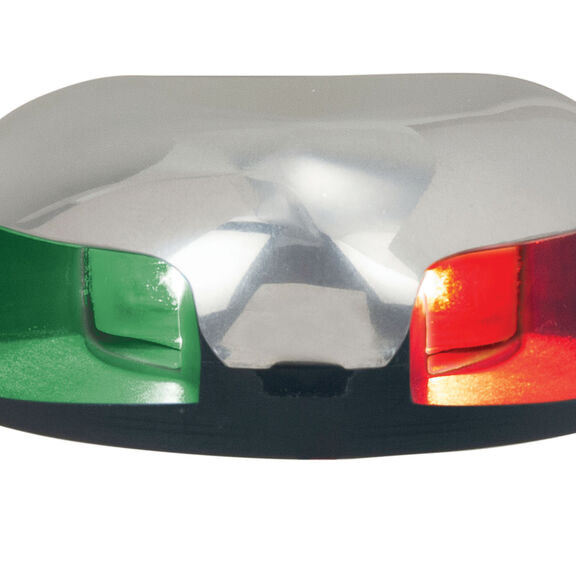

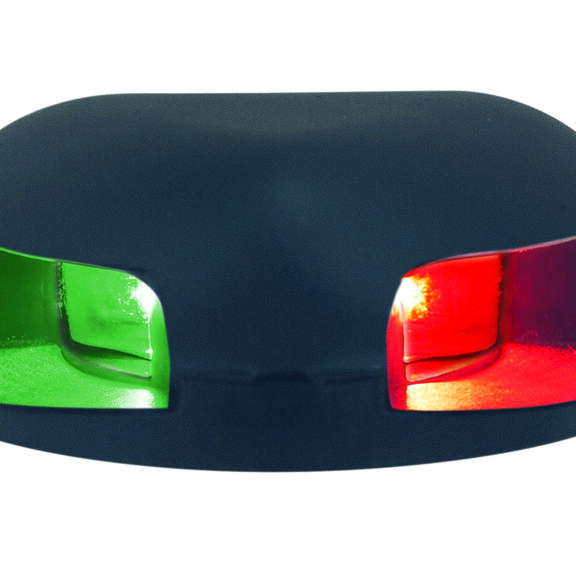

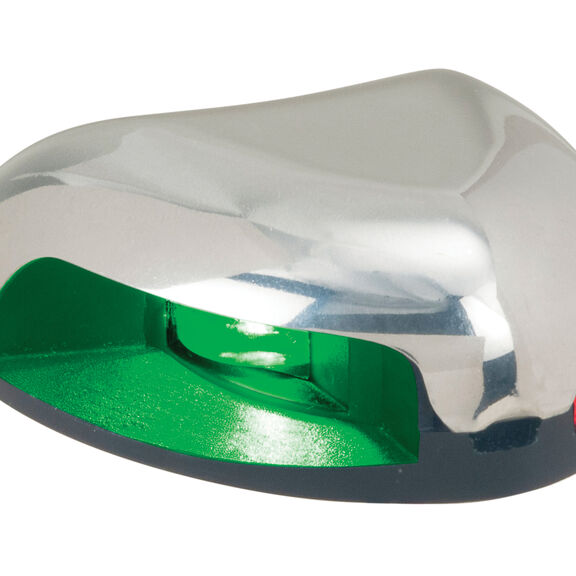

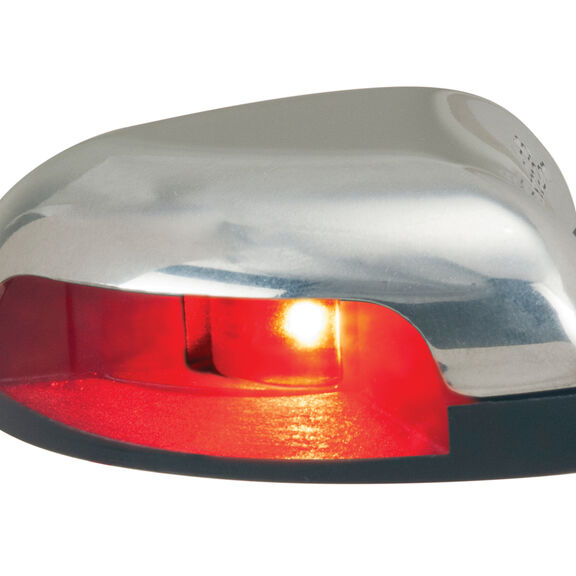

The Perko 0625DP0STS is a horizontal-mount LED bi-color navigation light designed for power-driven vessels under 20 meters (65.6 feet). It delivers a combined red and green running light in one low-profile unit, making it ideal for bow installations on small powerboats, center consoles, runabouts, and other vessels requiring compliant forward navigation lighting. The fixture features polished stainless steel top construction with a black polymer base, offering both aesthetic appeal and practical durability for exposed deck and bow installations subject to spray, washdowns, sun exposure, and regular foot traffic.

Built around high-tech, self-contained 12-volt LED modules, this light provides an efficient 2.5-watt power draw at 0.21 amps, significantly reducing electrical load compared to traditional incandescent navigation lights. The compact body measures 2.5 inches long by 2.75 inches wide by 1 inch high, helping maintain a low deck profile while ensuring proper visibility of red and green sectors from correct approach angles. The fixture uses #6 mounting screws and maintains the same footprint perimeter as Perko's 0615 and 0616 LED lights, though wiring hole and mounting screw locations may vary when replacing older units.

Key Features

• Bi-color LED design combines red and green navigation sectors in a single horizontal-mount fixture
• 12-volt LED operation with 2.5-watt power consumption and 0.21-amp current rating
• Polished stainless steel top with black polymer base for corrosion resistance and clean appearance
• Low-profile body (2.5" × 2.75" × 1") suitable for bow and foredeck mounting
• USCG 2-nautical mile (2nm) certification for compliant night running and low-visibility operation
• Meets comprehensive international standards: ABYC C-5, ABYC A-16 (2016), EN/ISO 19009:2015, 1972 COLREGS, RCD 2013/53/EU, and NMMA Type Accepted (Number: 2619657)
• Certified for use on power-driven vessels under 20 meters in both USA and European markets
• Uses #6 mounting screws for straightforward installation planning
• Same footprint perimeter as Perko 0615/0616 lights for potential retrofit applications

This fixture is suitable for boat owners replacing worn or outdated bow lights, upgrading from incandescent fixtures, or outfitting smaller powerboats with modern LED navigation lighting. Its low profile makes it especially useful on open decks and bow areas where exposed fixtures must withstand lines, dock work, anchor handling, and general movement around the boat.
