LED Horizontal Mount Side Lights

Perko LED Horizontal Mount Side Lights

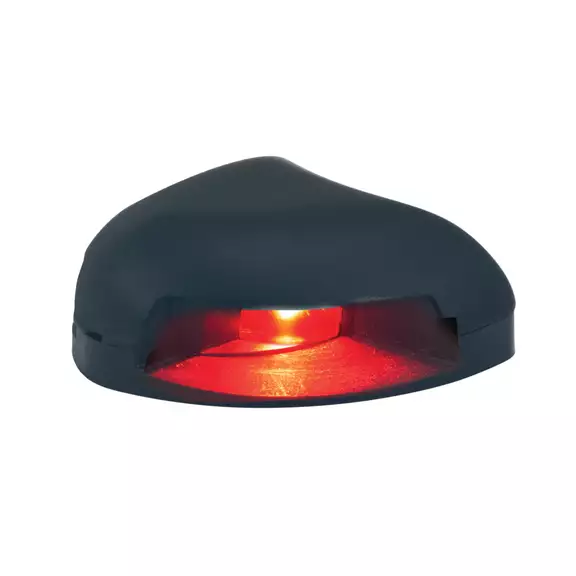

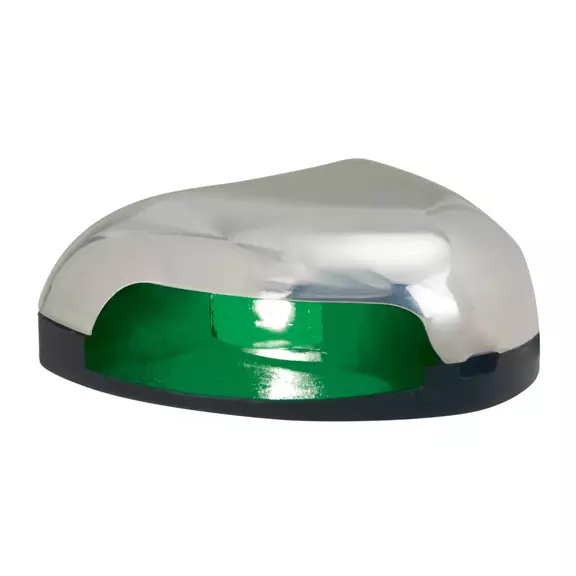

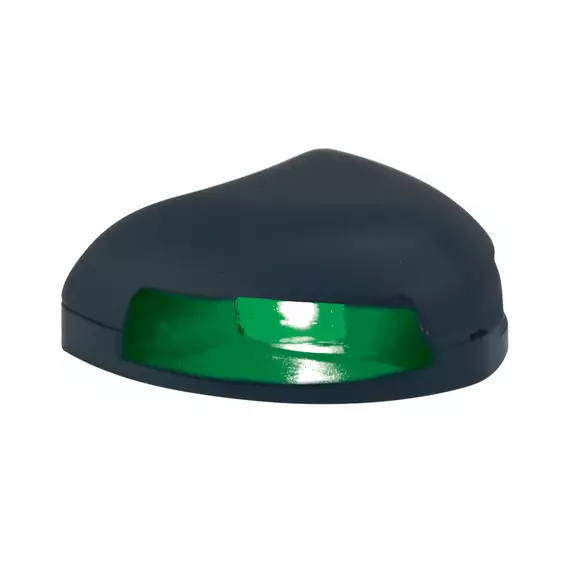

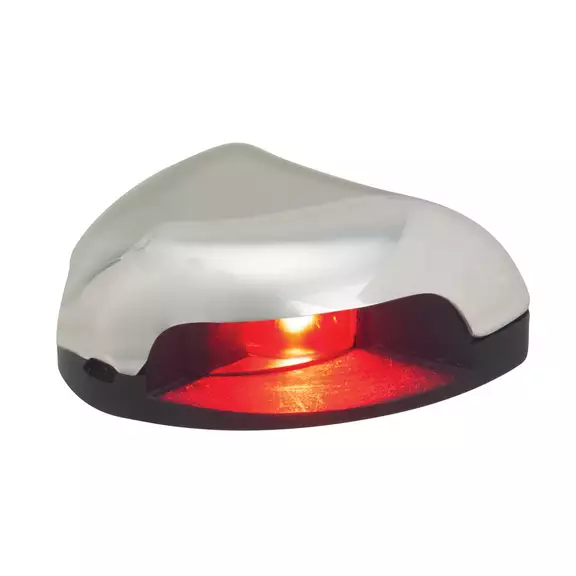

The Perko 0626DP0STS is a pair of red and green LED horizontal mount side navigation lights designed for power-driven vessels under 20 meters (65.6 feet). Each light features a 12 Volt LED module with 2.5 watt power draw and 0.21 amp current, providing reliable port and starboard navigation lighting with minimal electrical demand.

Constructed with a polished stainless steel top and black polymer base, these lights offer a sleek, modern aesthetic while delivering exceptional corrosion resistance for exposed deck, bow, and cabin-side mounting areas. The new stylish low-profile design maintains the same footprint perimeter as the 0615/0616 LED lights, though wiring hole and mounting screw locations may vary.

Key Features

• Pair of red and green horizontal mount LED side lights for port and starboard navigation lighting
• Certified for power-driven boats under 20 meters in USA and European markets
• USCG 2 nautical mile certified for required side light visibility
• High-tech, self-contained LED modules for reliable performance
• Polished stainless steel top with black polymer base for durability and aesthetics
• Low-profile housing measures 2-1/2 inch x 2-3/4 inch x 1 inch
• Uses #6 mounting screws for installation
• Same footprint perimeter as Perko 0615 and 0616 LED lights, though mounting details may vary
• Meets ABYC C-5, ABYC A-16 (2016), EN/ISO 19009:2015, 1972 COLREGS, RCD 2013/53/EU, and USCG 33 CFR standards
• NMMA Type Accepted Number: 2619658

Installation and fit: These lights are designed for horizontal mounting on flat or suitably prepared surfaces where the port and starboard lenses can show correct navigation sectors without obstruction. The compact housing is ideal for locations near bow rails, anchor lockers, rub rails, or existing deck hardware where space is limited. Proper bedding and correct #6 fasteners are essential for installations, especially on cored decks or areas exposed to regular washdowns.

Electrical and compliance: This 12 Volt LED light set is suited to standard 12V DC boat electrical systems. The LED modules keep current draw low, which is beneficial on smaller vessels where navigation lights may operate for extended periods during evening returns, early departures, or low-visibility conditions. USCG 2 nautical mile certification and compliance with listed marine lighting standards are critical for vessel safety. Correct mounting height, orientation, wiring protection, and switch labeling remain essential components of the complete installation.
