Clearance

High Tensile Stainless Steel Bow Shackles

Name: High Tensile Stainless Steel Bow Shackle, Type A, 3/8" Pin Dia., 1600lb. WLL
Brand: PETERSEN STAINLESS RIGGING
SKU: 17004177
Price: 31.98 USD
Availability: InStock

Model # 17004177 Mfg # PHB008TA

$31.98 $64.99

Advice & How-To

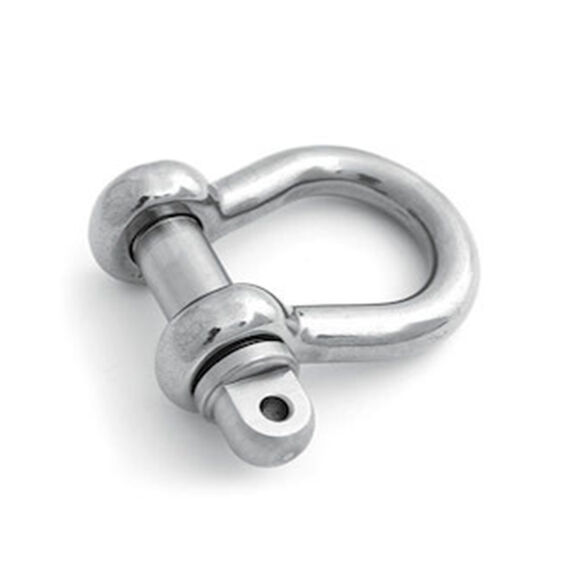

High Tensile Stainless Steel Bow Shackle, Type A, 3/8" Pin Dia., 1600lb. WLL image number 0

Clearance

PETERSEN STAINLESS RIGGING

High Tensile Stainless Steel Bow Shackles

Model # 17004177 Mfg # PHB008TA

$31.98 $64.99

Advice & How-To

Select a Product: High Tensile Stainless Steel Bow Shackle, Type A, 3/8" Pin Dia., 1600lb. WLL

−

Complete Your Purchase

PETERSEN STAINLESS RIGGING

High Tensile Stainless Steel Bow Shackles

$31.98 - $2,229.99 $64.99 - $2,229.99

RONSTAN

Split Ring

$2.79

WEST MARINE

Cotter Ring Kit

$19.49

FASCO FASTENER

316 Stainless Steel Lock Washers

$0.31 - $31.99 $3.79 - $31.99

RONSTAN

Shackle Lanyards

$7.99 - $9.99

WICHARD

Stainless Steel Safety Snap Hooks

$35.99 - $108.99

Product Features

Manufactured from 17/4PH precipitation hardening martensitic stainless steel
Excellent for general lifting applications - high tensile properties while avoiding work hardening
Corrosion resistance similar to 18/8 grade steels
Factor of Safety 6:1
Thick lugs on the shackle pins ensure that the product is both durable and dependable
Available with 4 pin types - Standard Screw Collar Pin (A Type), Extended Screw Collar Pin (AL Type), Countersunk Head (B Type), E Type Safety Pin (E Type)
Manufactured using the latest technology in electrical upset forging

Quality Features

Every shackle is proof load tested to 2 x WLL and certified at the manufacturing facility in the North East of England
All shackles are manufactured in accordance with the Machine Directive 2006/42/EC
Inspection certificate BS EN 10204 3.1 available on request
High quality finish and excellent polish

Applications
