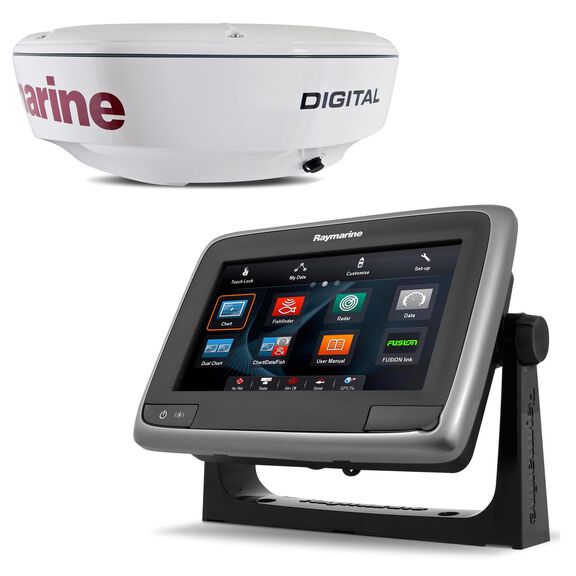

a78 Display with CHIRP/RD418D Digital Radome Value Pack, Non-WiFi
Purchase our Value Pack and combine the a78 with the 18" RD418D Digital Radome to outfit your vessel with a complete system at a value price.
The a78 display features Raymarine’s exclusive CHIRP DownVision™ for photo realistic images of structure and fish targets, and includes the CPT-100 transom mount dual-element CHIRP transducer. It throws a 25° conical beam, and also adds DownVision, projecting a beam that is wide (port and starboard) and thin (fore and aft), with outstanding depth performance of up to 600'.

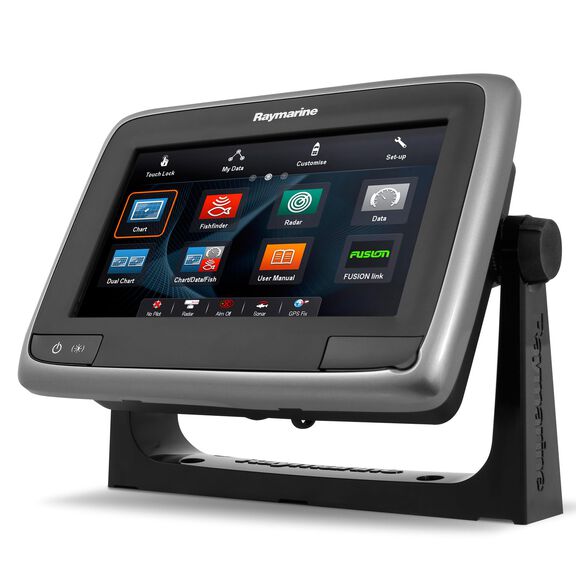

This a78 system pack includes preloaded Navionics Gold charts on a microSD card with US/Canadian Coastal, US Inland and Bahamas coverage. If desired, you can upgrade to 3D charting and satellite photos with Navionics Platinum Plus charts. The a78 can be expanded to include satellite weather, AIS, thermal imaging and much, much more. The a78 features a 7.0” diagonal LED-backlit LCD display that is optically bonded to its touchscreen for superior visibility day and night.
This system pack that includes the a78, Gold Navionics Cartography, CPT-100 CHIRP Transom Transducer and RD418D Digital Radome.
- Display Type: LED backlit, sunlight-viewable touchscreen
- Screen Size: 7" diagonal
- Screen Resolution: 800 x 480
- Preloaded Cartography: Navionics Gold cartography included (US/Canadian Coastal, US Inland and Bahamas coverage)
- Optional Cartography: Navionics Silver, Gold, Platinum PLUS, HotMaps or Raymarine LightHouse Charts
- NMEA Interface: Raynet Ethernet, SeaTalkng, NMEA 2000 (optional adapter), Bluetooth
- Receiver Type: 50-channel internal GPS
- Transducer: CPT-100 transom mount CHIRP transducer included
- Frequency: Dual-band CHIRP DownVision™ (320-380kHz) and CHIRP fish-targeting (170-230kHz)
- Dimensions: 8 1/16"W x 5 11/16"H x 2 3/4"D
- Voltage: 12V (10.2-15.6V DC)
- Power Consumption: Full brightness 9.9W Max, PowerSave 5.2W Max (Power consumption figures represent a loaded system; for sonar variants this includes an active 600 W transducer and DownVision™ variants includes an active CPT-100 transducer.)
- Waterproof Rating: IPX6, IPX7
- Warranty: Three years (with product registration)

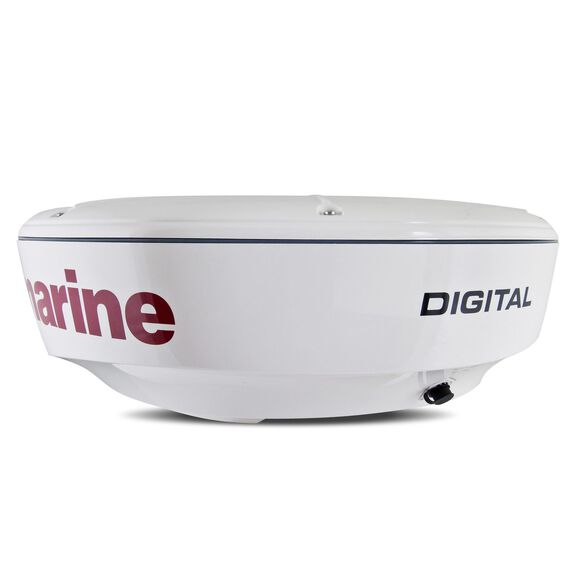

Radar Specs:
- Radome Dimensions: 18" diameter, 9.3" high
- Weight: 15.8 lbs (7.2 kg)
- Waterproof Rating: IPX7
- Rotation speed (RPM): 24/30 rpm (dual rotation)
- Transmit power: 4 kW
- Power Input: 10.5-35 V DC
- Beamwidth: 5.0° horizontal, 25° vertical
- Maximum range: 36 nm
- Minimum range: 20 meters
- Radar type: Radome
- Power consumption: 33.5 W typical
- Antenna length: 17"
Included with this product:
- RD418D Digital Radome
- 10m Digital Radar Cable with RayNet Connector
- a78 Multi-Function Display
- CPT100 transom mount CHIRP transducer
- Navionics Gold cartography with US/Canadian Coastal, US Inland and Bahamas coverage
- Trunnion bracket, flush mount kit and mounting hardware
- Sun cover
- Documentation pack
Other Transducer Options:
This product will also operate well with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings:
| Transducer Type: CHIRP | Reading(s) | Material | Depth | Model |
|---|---|---|---|---|
| CPT110 Thru-Hull CHIRP DownVision™ Transducer with Fairing Block | Fishfinder/DownVision™ | Plastic | 600' | 14907893 |
| CPT120 Thru-Hull CHIRP DownVision™ Transducer with Fairing Block | Fishfinder/DownVision™ | Bronze | 600' | 14907901 |
