AIS650 Class B Transceiver

Rebate

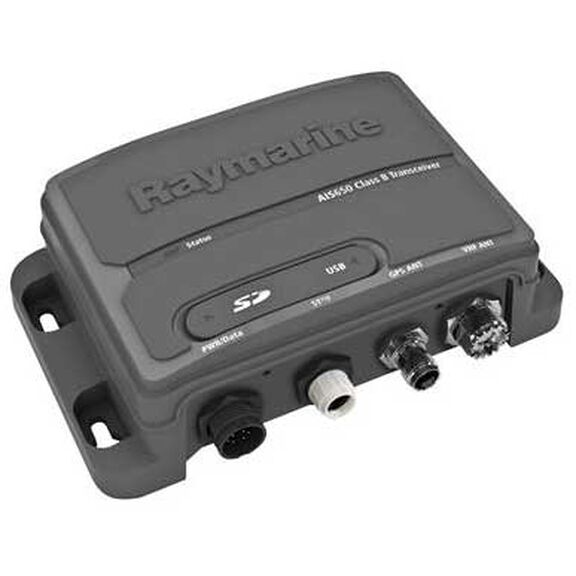

AIS650 Class B Transceiver

4 out of 5 Customer Rating
-
+
Fulfilled by Vendor, typically 2-3 weeks.

Vendor Shipping Details

This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.

Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.

West Marine will email you when your order ships from the vendor.

Protect Your Purchase

Add extra coverage from the date of purchase beyond the manufacturer’s warranty. Details

What's Covered?

PLUS adds up to 2 more years of coverage beyond the Manufacturer's Warranty and offers extra coverage from the date of purchase throughout the extended term. PLUS includes:

  • Wear and Tear Coverage
  • Power Surge Protection
  • Exchange for products under $400
  • Onboard service on products over $750
  • Up to 5 years of total coverage

Your PLUS plan goes into effect with your purchase ‐ no registration required. Purchase your PLUS plan online, in stores or by calling 1 (800) 262-8464.

$79.44
$109.49
$999.99
This item is currently unavailable.
Enter your email address to be added to the waitlist.
Model # 12789756 Mfg # E32158
Truck Freight

Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.

Warning Hazard shipping
Item Can only Ship to Store

Pre-programming is required.
Register your AIS here prior to shipping. www.westmarine.com/ais-registration

Dual-channel receiver provides fast acquisition and tracking of both Class A and Class B AIS targets; Transmits AIS Class B data.

Smaller footprint: AIS650 allows you to transmit your AIS information to other vessels, and to receive and display AIS data right on your Raymarine radar or chartplotter screen, in a package that’s 50 percent smaller than previous generation AIS transceivers.

Stealth Mode: Silent Mode allows you to switch off the AIS transmitter for reasons of security or privacy, and it can be enabled or disabled from any Raymarine display on the network.

SD Card Data Logging: AIS650 includes an SD memory card slot, and AIS data recording capability, with an estimated seven-day data storage even in locations with heavy vessel traffic.

Multiple connection options make AIS650 easy to integrate with all of your onboard electronics. Dual-channel receiver provides fast acquisition and tracking of both Class A and Class B AIS targets, particularly important when tracking fast-moving Class B vessels like speedboats, small commercial powerboats, and small fast ferries.

Exclusive Buddy Tracking feature allows you to save AIS targets of interest with a special icon and “friendly” name, making it easy to spot the boats of friends and family out on the water.

Key Features

  • Dual channel receivers: AIS vessel monitoring of class A and B transmissions
  • 50-Channel GPS: Dedicated 50 channel RAIM compliant GPS receiver for superior accuracy.
  • SeaTalkng networking for simple integration with Raymarine C Series Widescreen, E Series Widescreen and G Series systems.
  • USB 2.0 port for plug-and-play connection to PC based navigation systems.
  • SD Card Slot for recording of AIS data.
  • Built-in NMEA multiplexer simplifies integration with legacy multi-function displays, VHF radios and third party devices.

Specifications

  • AIS Type: Class B
  • Display Type: Not included
  • Compatible Displays: aSeries, cSeries, eSeries, eS Series, gS Series, G Series, E Series Widescreen, C Series Widescreen Multifunction Displays
  • Antenna: GPS antenna w/33' cable included
  • Dimensions: 6 9/16"W x 3 15/16"H x 2 1/8"D
  • Voltage: 12-24V DC
  • Amperage: 2A
  • NMEA Interface: NMEA 2000, NMEA 0183, SeaTalkng
  • Waterproof Rating: IPX2
  • Warranty: Three years (with product registration)

What's in the Box

  • AIS650 Class B Transceiver
  • GPS remote antenna w/10m coax
  • 2m power/data cable
  • 1m SeaTalkng spur cable
  • SeaTalkng dust cap
  • fasteners



Dimensions 2" Height x 4 1/2" Length x 2 1/8" Depth
Voltage 12 to 24 Volts DC
Warranty Three Years (with Product Registration)
