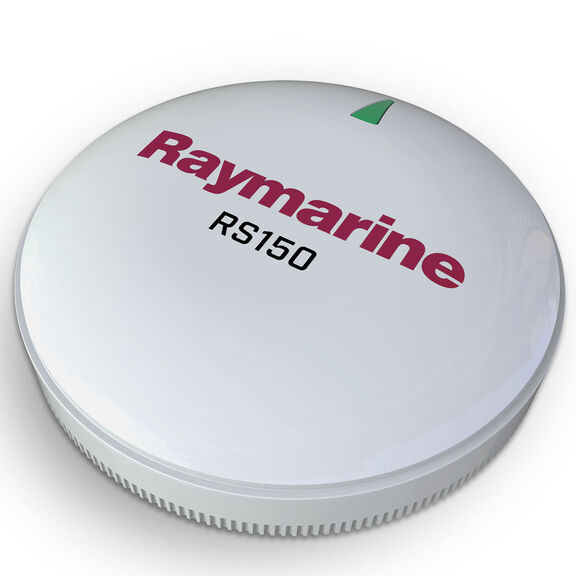

RS150 GPS Receiver
Model #
17870270
Mfg #
E70310
$369.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems.
The RS150 is a SeaTalkng Global Navigation Satellite Systems (GNSS) Receiver and supports the GLONASS global navigation satellite system.
The RS150 provides position data to devices connected to the SeaTalkng network. When used in conjunction with a SeaTalk and SeaTalkng converter the RS150 can also provide position data to SeaTalk devices. The RS150 offers fast 10Hz position updates and enhanced accuracy.
Key Features
- Compatible with GPS and GLONASS GNSS systems; BeiDou and Galileo ready (supported by future software update)
- Pole, rail, surface or bracket mountable (mounting kits available, sold separately)
- Compatible with WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India) differential systems
- Fast 10Hz refresh rate for smooth on-screen position updates
- NMEA 2000 compliant so installation is simplified
- Low power consumption; 30 mA maximum (NMEA 2000 LEN = 1)
- 12V DC operation (24V protection); draws power from the NMEA 2000 bus
- Waterproof to IPx6 so mounting locations are less critical
Compatibility with Raymarine Products
- aSeries, cSeries, eSeries and eS Series with integral GPS: aSeries a65, a67, a75, a77, a78, a95, a97, a98, a125, a127, a128; eS Series eS75, eS78. eS97, eS98, eS127, eS128
- gS Series: gS Series systems require a Raymarine RS150 GPS external sensor as part of the network
- Legacy E Series Widescreen (E90W, E120W, E140W): The E Series Widescreen displays do not have an integrated GPS and can use the RS150 connected via a SeaTalkng backbone
- Legacy C Series Classic (C80, C120) E Series Classic (E80, E120): Classic Multi-function Displays require a SeaTalk1 to SeaTalkng converter to connect an RS150.
What's in the Box
- GPS receiver unit
- Mounting seal
- SeaTalkng spur cable (3 metres)
- Documentation
- M4 x 40mm Threaded studs x 3 (used for surface mounting)
- Finger nuts x 3 (used for surface mounting)
Dimensions
4 1/4" Diameter x 1" Height
Voltage
12 to 24 Volts DC
Warranty
Three Years (With Product Registration)
