This product is not longer available, we recommend a similar product instead:
CPT-DVS Transom Mount CHIRP DownVision Transducer
Model #
16566515
Mfg #
R70374
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Get 5X West Advantage Points on all purchases for a limited time! Not a rewards member? JOIN NOW

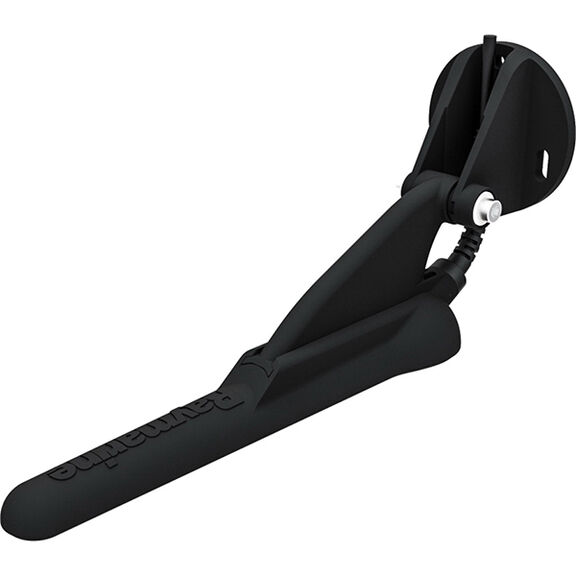

CPT-DVS Transom Mount CHIRP DownVision Transducer
Model #
16566515
Mfg #
R70374
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
The CPT-DVS can be used with the Dragonfly 4 and 5 (all variants except 5M) and the 7PRO model. If using with an original Dragonfly 5.7" or 7" model, use the A80331 adapter cable.
- Dual element CHIRP transducer
- 1.4 Degree ultra-wide, fan-shaped beam for a wide view of DownVision™ images
- Second conical shaped beam for imaging fish targets
- Records depth and temperature
- CPT-DVS cable length is 6m (19.7'.)
- Compatible with various hull materials including fiberglass, wood, and metal
Type
Transom Mount
Beam
25 Degrees (Sonar)
Deadrise Angle
0 Degree
Frequency
Sonar: 170 kHz - 230 kHz
,
DownVision: 320 kHz - 380 kHz
Material
Plastic
Maximum Depth
600 Feet (DownVision)
,
900 Feet (CHIRP Sonar)
Mount Type
Transom Mount
Sonar
CHIRP Sonar
,
DownVision
Type
Transom Mount
Waterproof
Waterproof
