EV-300 Evolution Solenoid Autopilot

Evolution Autopilots combine advanced aerospace guidance technology with Raymarine’s marine autopilot expertise to deliver a new level of accurate autopilot control. Evolution has no need of a setup compass swing or calibration, and does not need to be adjusted to the boat in which it is installed. This innovative breakthrough in autopilot intelligence uses Evolution AI™ control algorithms which enable Evolution autopilots to perceive their environment and instantly calculate and evolve steering commands to maximize performance. The result is precise and confident course keeping, regardless of vessel speed or sea conditions.

At the heart of the Evolution system is the ultra-compact, EV sensor core—a nine-axis heading sensor and full-function course computer. Around the same size as a typical marine GPS sensor, the EV sensor core can be bracket-mounted or flush-mounted horizontally, and can be installed above or below deck (it’s IPX6 water-resistant) as space and practicality dictate.

EV-1 uses SeaTalk^ng cabling for a single power and data connection to the SeaTalk^ng bus and the Actuator Control Unit (ACU). Autopilot control is via the p70R control head. Setting-up an Evolution autopilot takes just 30 seconds; select the boat type—large power, small power, or sail; select the drive type—hydraulic, mechanical, or outboard; and choose the performance level—performance, cruise, or leisure, it is as easy as that.

NOTE1: When sizing an Evolution system for your boat, always take the fully laden displacement weight of your vessel into account, this is often 20% above the designed displacement.

NOTE2: Evolution Autopilots communicate via SeaTalkng. A SeaTalkng to NMEA Converter Kit (E22158) may be required to connect older Raymarine or non-Raymarine displays. Raymarine software version 1.21 is also a minimum requirement.

EV-300 Solenoid is designed for larger powerboats with solenoid-controlled steering systems and Raymarine constant running hydraulic pumps. The kit includes everything needed to complete an Evolution autopilot system with the exception of a constant running variable pump (CRVP). Just pair the EV-300 with any Raymarine CRVP and the system is complete. Additionally, any vessel that currently possesses a SPX-SOL autopilot system can purchase this pack and easily upgrade to the latest in autopilot technology, without replacing their existing CRVP.

• Boat Type: Larger powerboats with solenoid-controlled steering
• Drive Type: Solenoid or Constant Hydraulic
• Hydraulic Ram Capacity: 30.5-73cu in. (500-1,200cc)
• Controls: p70R
• Draw: EV-1: 30mA, ACU-300: 300mA-5A (12-24V); Control head: 134mA

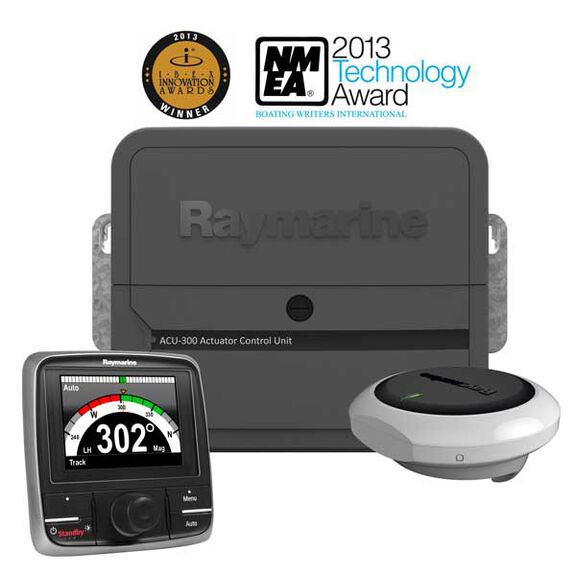

• Included Equipment: EV-1 Sensor Core, ACU-300 Actuator Control Unit, p70R Autopilot Control Head, Evolution Cabling Kit
• Data Interface: SeaTalk^ng, NMEA 2000
• Warranty: Three years (with product registration)
