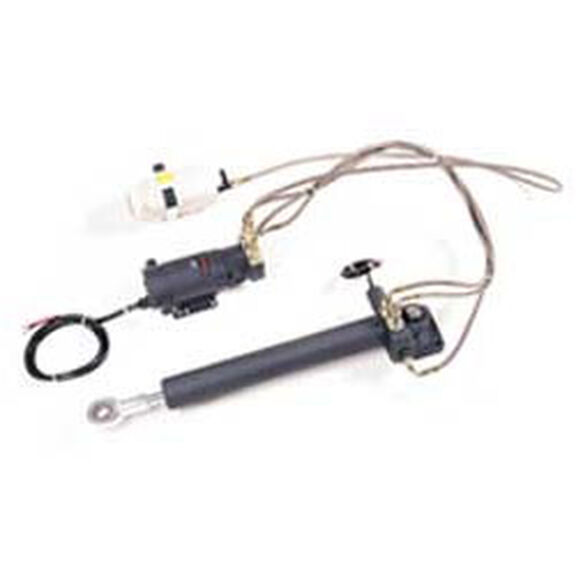

M81202 12V Type 3 Autopilot Hydraulic Linear Drive
Model #
6418339
Mfg #
M81202
$3,914.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
M81202 12V Type 3 Autopilot Hydraulic Linear Drive
Model #
6418339
Mfg #
M81202
$3,914.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Type 3 Hydraulic Linear system for large mechanically steered vessels.
Designed for larger mechanically steered vessels over 77,000lb. (35,000kg) , Raymarine hydraulic linear drives are self-contained hydraulic steering systems consisting of a reversing pump, reservoir and hydraulic ram.
Specifications
- Max. Boat Displacement: 77,000lb.
- Operating Voltage: 12V DC
- Length Mid Stroke: 28.7"
- Peak Thrust: 2,700lb.
- Max Torque: 28,000lb.
- Average Power: 90W
- Hard-over to hard-over time: 10 seconds
- Corepack Used: ACU-400
- Replaces Raymarine Part Number: E12207
Notes
- A hydraulic linear drive unit connects to the rudder stock via an independent tiller arm
- Accessory fittings from your steering system manufacturer may be required
- An authorized Raymarine dealer is best suited for installing a linear drive system
- Must be able to back drive steering system for the rudder
Type
Linear Drive Unit
Best Use
Powerboats
Drive Type
Linear
Maximum Boat Displacement
77000 Pounds
Type
Linear Drive Unit
Warranty
Two Years
