P48 Fan Beam Transom Mount Traditional Transducer
Model #
14395537
Mfg #
A80150
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.

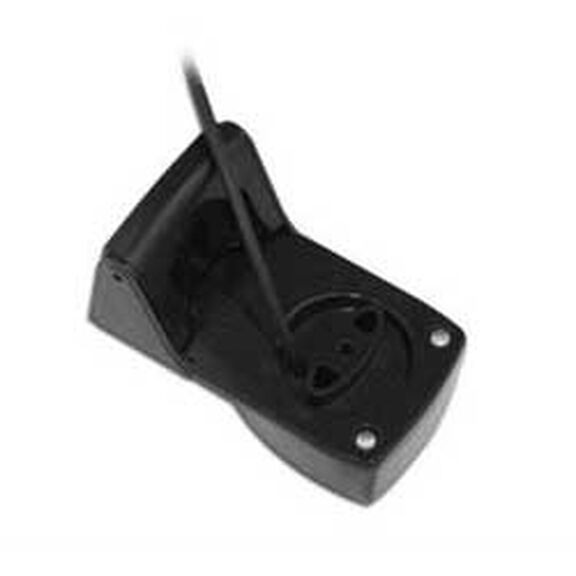

P48 Fan Beam Transom Mount Traditional Transducer
Model #
14395537
Mfg #
A80150
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
Earn Up to $1500 Mail-in Rebate
RAYMARINE SYSTEM REWARDS SALES EVENT
Earn a Raymarine Visa Prepaid Card (by mail) when you purchase Raymarine Electronics during the Raymarine System Rewards Event. The more equipment you add, the bigger your rewards will be!
- Earn $250 on your Raymarine purchase of $2,500 or more
- Earn $500 on your Raymarine purchase of $5,000 or more
- Earn $1,000 on your Raymarine purchase of $10,000 or more
- Bonus! Add a FLIR M232 to any system and earn an extra $500 (only the FLIR M232 thermal camera is eligible for this promotion)
Valid January 8, 2018 — July 6, 2018
View Details
Key Features
- Three times the beam width of conventional 200 kHz transducers
- Unique beam rotation control built into transducer housing
- 100W RMS
- 200 kHz frequency for fishing up to 300 feet of water
- Elliptical wide beam is 38º x 12º degrees wide at -3dB (maximum measured power)
Type
Transom Mounts
Beam
12x38 Degrees - Elliptical Fan Beam
Deadrise Angle
0 to 20 Degree
Frequency
200kHz
Material
Plastic
Maximum Depth
300 Feet
Sonar
Depth
,
Temperature
Transmit Power
100 Watts
Type
Transom Mounts
