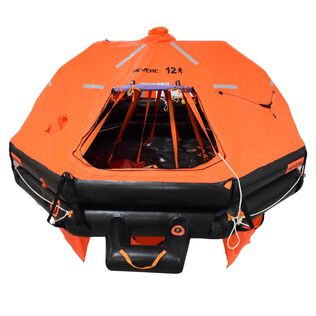

Revere USCG Compact Liferaft
The Revere USCG Compact Liferaft is a robust design developed from a product that has been used by the military for more than 15 years. The liferaft is capable of reliable performance in the harshest of conditions. Offering 40% space reduction over the cylindrical equivalent, it is ideal for vessels with a drop height of up to 18 meters. The compact canister container makes it easy to stow aboard vessels where space is at a premium, without sacrificing any of the safety features demanded by USCG and SOLAS A certification.
The 6-person variant (Part Number 290010) measures 31 x 22 x 13 inches and weighs 143 lbs. It is deployed via throw-over launch and is designed for horizontal deck mounting with an optional stainless steel/galvanised cradle available on special order. The LALIZAS Hydrostatic Release Unit (HRU), available as an accessory, is SOLAS/MED/USCG-MER and TC approved and automatically activates at a depth of 1.5 to 4 meters to release and inflate the liferaft from a sinking vessel. The HRU requires no maintenance and must be replaced after 2 years onboard or 4 years from manufacture.
The complete product family is available in 6, 8, 10, 12, and 16-person configurations, all certified USCG/SOLAS A.
Key Features
- USCG/SOLAS A certified
- Compact container with 40% space reduction over cylindrical equivalent
- Launch type: throw-over
- 18m drop height capability
- Dual tube system for enhanced buoyancy redundancy
- USCG-approved internal and external lighting system
- Insulated floor to retain heat
- Retro-reflective tape to increase visibility
- Dual zip closure for splash protection
- Strong inflatable boarding ramp with reinforced bladder for ease of boarding
- Large water ballast pockets for maximum stability
- External guide rail
- Window ties to enable observation port
- Stainless steel/galvanised cradle available on special order (horizontal deck mounting only)
- SOLAS A equipment pack included: Bailer, Paddles (2), Topping-up Pump, Sea Anchors (2), Parachute Flares, Smoke Signals, Hand Flares, Repair Kit, Drinking Cup, Thermal Protective Aids, Seasick Tablets, Seasickness Bags, Flashlight (with extra batteries and bulb), Jack knife, Signal Mirror, First Aid Kit, Fishing Kit, Can Opener, Whistle, Food, Water
