SEAFLO MARINE Eyes Shape Portlight

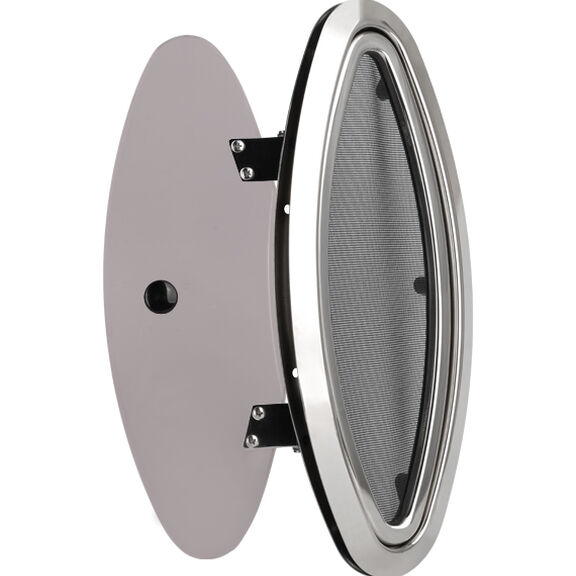

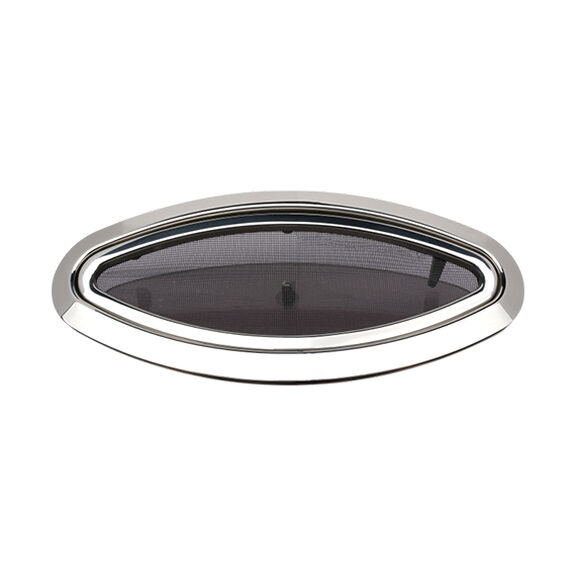

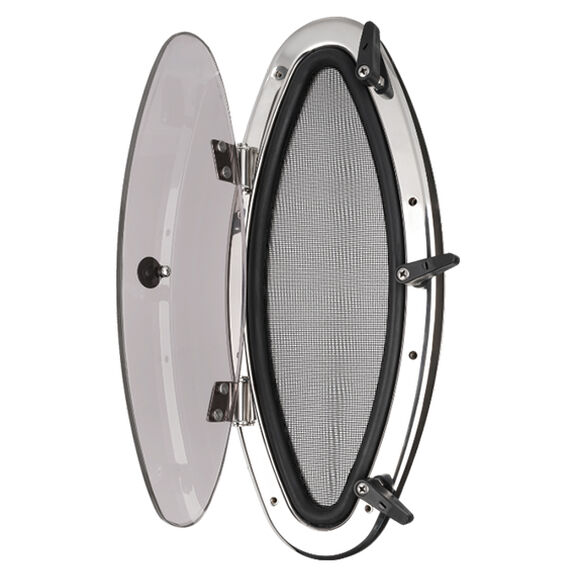

The SEAFLO MARINE Eyes Shape Portlight (model SFP3-460-03) is an elliptical, eye-shaped opening portlight engineered for deck or hull installation on recreational and commercial marine vessels. Its distinctive teardrop/oval profile integrates aesthetically into a wide variety of hull and deck designs, providing both natural light and ventilation with a streamlined silhouette. The low-profile frame is fabricated from marine-grade #316 stainless steel with a mirror-polished surface treatment that simplifies cleaning and minimises corrosion points in saltwater environments.
The smoke-tinted acrylic glazing offers lightweight impact resistance while reducing cabin glare — ideal for vessels operating in bright sunlight conditions. A nylon handle allows straightforward manual operation for opening and closing the portlight. The unit is designed to accommodate deck thicknesses of up to 0.5" (12mm), with an installation height of just 1.6" (40mm), making it compatible with shallow deck structures.
Key Features
- Elliptical/eye-shaped profile for aesthetic integration on hulls and decks
- #316 stainless steel frame for superior marine corrosion resistance
- Mirror-polished finish for easy cleaning and reduced corrosion risk
- Smoke acrylic glazing for lightweight impact resistance and glare reduction
- Nylon handle for secure, reliable manual operation
- Low installation height (1.6"/40mm) compatible with shallow deck structures
- Frame size: 18"x8" (460x205mm); cut-out size: 16.3"x6" (414x156mm)
- Suitable for both recreational and commercial vessel applications
- Unit weight: 4.4 lbs (2 kg)
