Standard Oval Portlight – 04 Series

SEAFLO MARINE Standard Oval Portlight – 04 Series

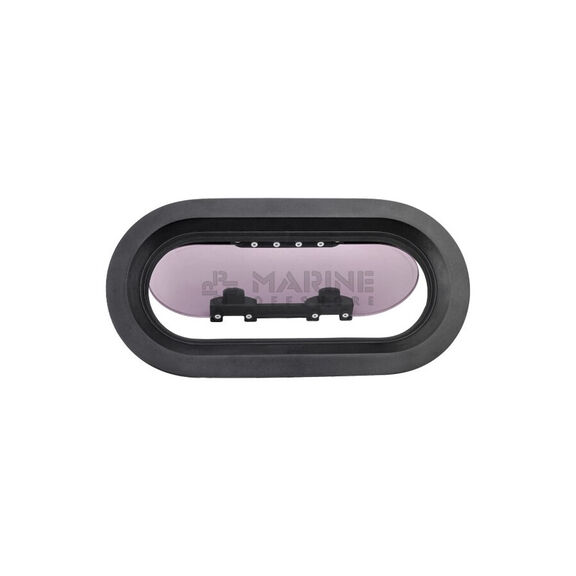

The SEAFLO Standard Oval Portlight – 04 Series (Model SFP2-397-04) is a durable, high-performance oval portlight engineered for use on boats, ships, and a wide range of marine and recreational vehicle applications. This portlight delivers reliable protection against the elements while ensuring safe and effective natural light transmission through its high-clarity acrylic glazing.

The frame is constructed from aluminum alloy and treated with an anodized surface finish, providing enhanced resistance to corrosion, salt air, and UV exposure — essential qualities for long-term performance in marine environments. The nylon handle is designed for smooth, effortless operation and is built to withstand the rigors of regular use at sea. The black anodized finish gives the portlight a sleek, modern appearance that complements contemporary vessel designs.

Installation is straightforward thanks to the clearly defined frame and cut-out dimensions. The portlight is designed to accommodate standard deck thicknesses, making it a versatile choice for a wide variety of hull and superstructure applications. Whether retrofitting an existing vessel or specifying components for a new build, the SFP2-397-04 delivers consistent quality and ease of fit.

Key Features

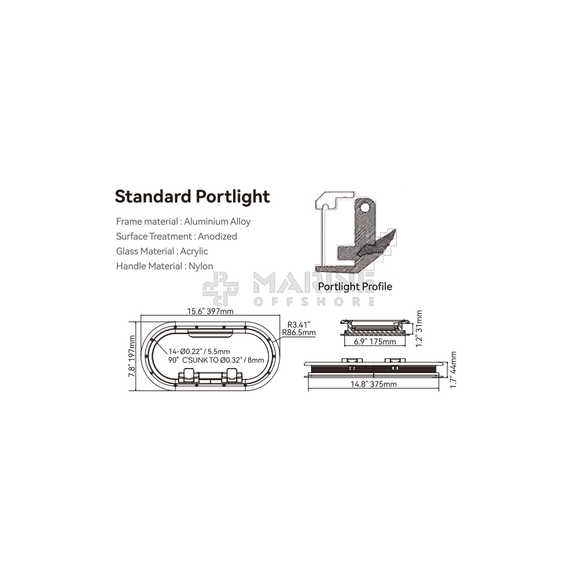

• Oval shape with a frame size of 397mm x 197mm (15.6" x 7.8") and cut-out size of 375mm x 175mm (14.8" x 6.9")
• Anodized aluminum alloy frame for strength, lightweight design, and corrosion resistance
• Acrylic glazing provides excellent clarity and durability in marine environments
• Nylon handle for easy, reliable operation
• Black anodized finish for a clean, modern aesthetic
• Height of 1.8" (42.5mm) with deck thickness compatibility up to 1.7" (44mm)
• Additional deck thickness option of 1.2" (31mm) available
• Designed for easy installation with clearly specified cut-out dimensions
• Suitable for boats, ships, and recreational marine vehicles
• Unit weight: 4.0 lbs (1.83 kg)
