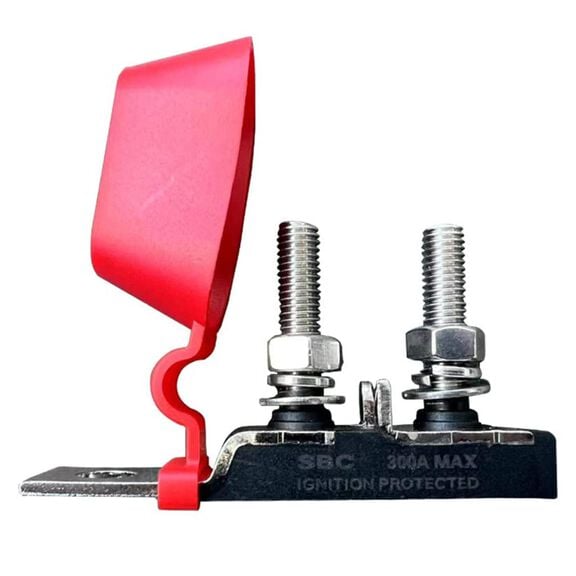

South Bend Components Marine Rated Battery Fuse Dual Terminal Block, 300A Max
Complete Your Purchase
South Bend Components Marine Rated Battery Fuse Dual Terminal Block, 300A Max

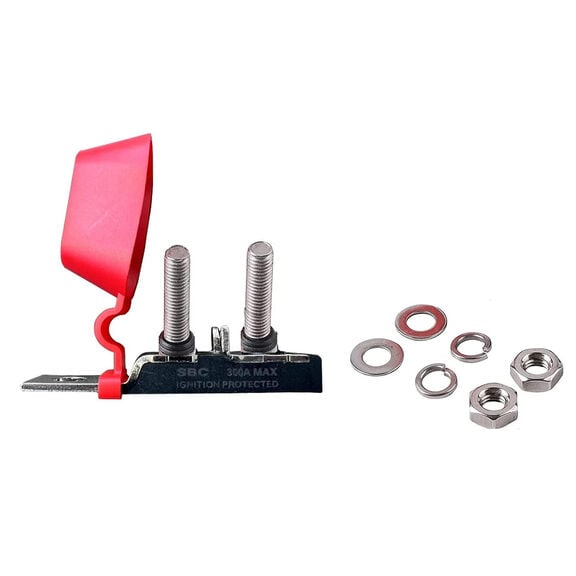

The South Bend Components Marine Rated Battery Fuse (MRBF) Dual Terminal Block provides a secure mounting solution for MRBF fuses in high-current DC electrical systems with dual terminal capability. Compatible with Blue Sea, Bussmann, and Eaton MRBF fuses, the terminal block supports fuse ratings from 30A to 300A with a maximum system voltage of 58V DC. Designed for demanding marine environments, it is ignition protected, IP66 rated to resist powerful water jets, and meets ABYC requirements with a 10,000 AIC rating at 14V DC. The kit includes one MRBF dual terminal fuse block, one red insulator cap, one washer, one lock washer, and one M8 hex nut. Fuse is not included.
Key Features
- Dual Terminal Design - Supports dual terminal connections for high-current DC electrical systems using MRBF fuses.
- Broad Fuse Compatibility - Designed for use with Blue Sea, Bussmann, Eaton, and other compatible MRBF fuses rated from 30A to 300A.
- Marine-Ready Construction - Ignition protected and IP66 rated for dependable performance aboard gasoline-powered boats and other harsh environments.

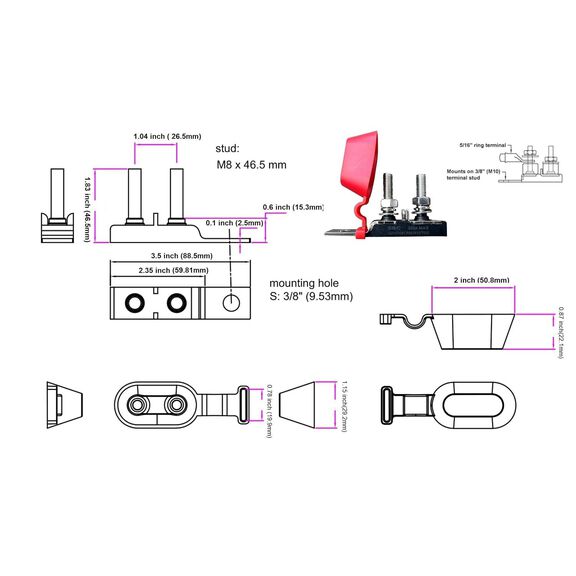

- High-Current Capacity - Rated for systems up to 58V DC with an M8 (5/16") fuse stud and M10 (3/8") mounting hole for secure installation.
- ABYC Compliant Protection - Provides a 10,000 AIC rating at 14V DC to satisfy ABYC requirements for DC main circuit protection.
