South Bend Components Marine Rated Battery Fuse Terminal Block, 300A Max
Model #
24234734
Mfg #
SBCMRBFTFB-01-1PK
$15.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
South Bend Components Marine Rated Battery Fuse Terminal Block, 300A Max
Model #
24234734
Mfg #
SBCMRBFTFB-01-1PK
$15.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
South Bend Components Marine Rated Battery Fuse Terminal Block, 300A Max

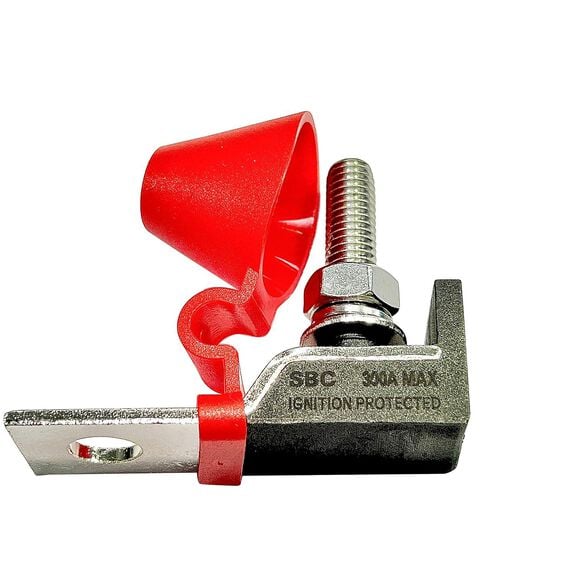

The South Bend Components Marine Rated Battery Fuse (MRBF) Terminal Block is designed to provide a secure mounting solution for MRBF fuses in high-current DC electrical systems. Compatible with Blue Sea, Bussmann, and Eaton MRBF fuses, the terminal block supports fuse ratings from 30A to 300A with a maximum system voltage of 58V DC. Constructed for marine environments, it is ignition protected, IP66 rated against powerful water jets, and meets ABYC requirements with a 10,000 AIC rating at 14V DC. The kit includes one MRBF terminal fuse block, one red insulator cap, one washer, one lock washer, and one M8 hex nut. Fuse is not included.
Key Features
- MRBF Fuse Block Only - Includes one MRBF terminal fuse block with installation hardware. Fuse sold separately.
- Broad Compatibility - Designed for use with Blue Sea, Bussmann, Eaton, and other compatible MRBF fuses rated from 30A to 300A.
- Marine-Ready Construction - Ignition protected and IP66 rated for reliable performance aboard gasoline-powered boats and other demanding environments.

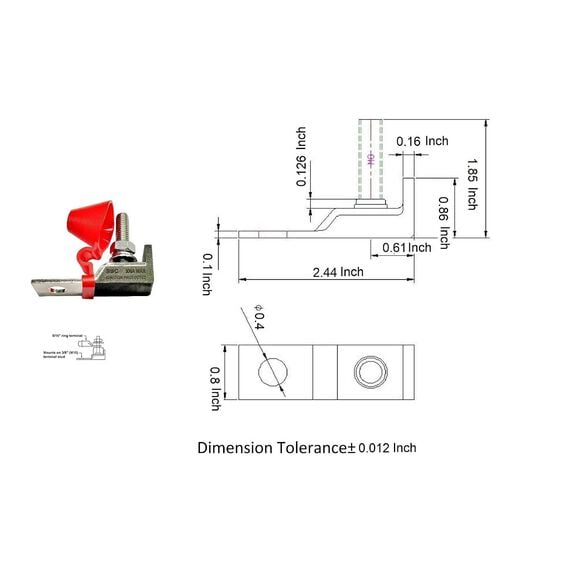

- High-Current Design - Rated for systems up to 58V DC and features an M8 (5/16") fuse stud with an M10 (3/8") mounting hole.
- ABYC Compliant Protection - Provides a 10,000 AIC rating at 14V DC to satisfy ABYC requirements for DC main circuit protection.
Type
Marine Rated Battery Fuse Terminal Block
