1-1/4" Light Bar for Closed Dome Radars - Black

Seaview 1-1/4" Light Bar for Closed Dome Radars - Black

The Seaview LTBRBLK is a 1.25-inch diameter aluminum light bar finished in a durable black powder coat, designed to work with 18" to 24" closed dome radars and compatible with Seaview Modular Mounts. The light bar inserts into a socket on the aft side of a Seaview modular mount, and an included bracket secures it to the four holes found in every Seaview modular top plate using a stainless steel clamp and four supplied bolts. A light bar top is required and must be purchased separately. When oriented vertically, this light bar has an overall fore-aft length of 17.25 inches and an overall height of 17.88 inches.

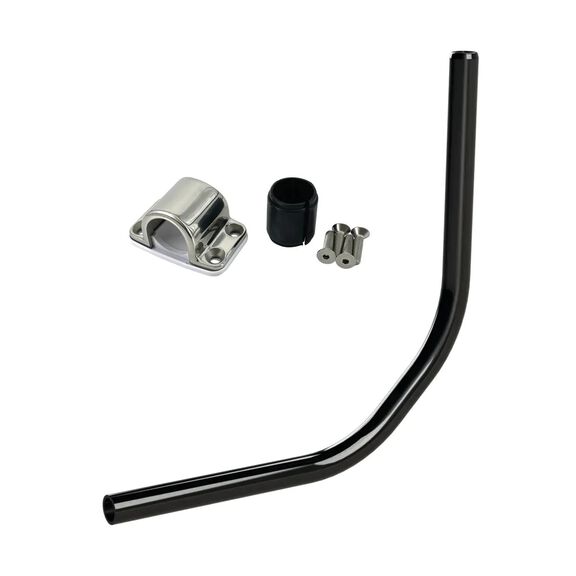

The LTBRBLK includes a securing bracket, a rubber sleeve, and fasteners for securing the bracket to the top plate. It is compatible with navigation lights, floodlights, GPS antennas, and other marine accessories. Note that the light bar does not include a light — light bar tops with selected popular lights or provisions for lights and additional accessories are sold separately.

Key Features

• Compatible with 18" to 24" closed dome radar antennas (radomes)
• 1-1/4" diameter aluminum tube construction with black powder coat finish
• Compatible with Seaview Modular Mounts — inserts into aft socket of modular mount
• Secured to top plate via stainless steel clamp and four supplied bolts
• Includes securing bracket, rubber sleeve, and fasteners for top plate attachment
• Supports mounting of navigation lights, floodlights, GPS antennas, and other accessories
• Light bar top required — sold separately
• On select models (LTB-R, LTB-S, LTB-S24), can fold over 90° for extra height clearance in low-clearance storage
• Overall fore-aft length (vertical orientation): 17.25 inches
• Overall height (vertical orientation): 17.88 inches
• Weight: approximately 2.4 lbs
