PMF57M1BLK 5" Tall Forward-Leaning Radar Mount (Black)

Seaview PMF57M1BLK 5" Tall Forward-Leaning Radar Mount (Black)

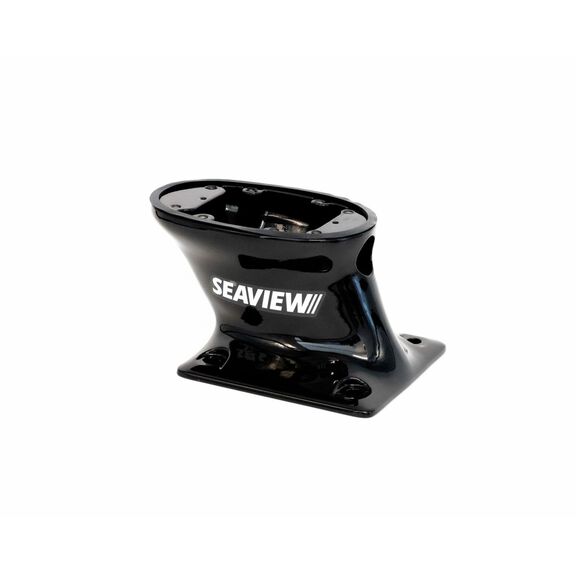

The Seaview PMF57M1BLK is a 5-inch tall modular radar mount with a forward-raking design, finished in black powder-coated marine-grade aluminum. It is engineered for closed dome radars and small satdomes up to 16 inches in diameter, and is also compatible with 18–24 inch closed dome radars, satdomes, and cameras. The compact 7x7-inch footprint makes it an ideal solution where deck or hardtop mounting space is limited, while the oval hollow mast section allows cables to be routed cleanly and out of sight.

The mount uses a three-step modular system: select the mount, choose a compatible top plate, and add optional accessories. A Seaview Modular Top Plate is required and is sold separately — the top plate must match the mounting fasteners on the specific radar or satdome being installed. Because the design is modular, upgrading to a different radar or satdome in the future only requires replacing the top plate, not the entire mount assembly, making it a cost-effective long-term solution.

Optional accessories available for this mount include light bar spreader kits, aft and forward wedges, hinge adapters, LED navigation and deck lights, floodlight kits, and GPS antenna mounts. The mount ships with base fastener seals, a top gasket, a light bar positioning dowel, a light bar socket plug with O-ring (for use when no light bar is installed), and installation instructions.

Key Features

• 5-inch tall forward-raking modular mount with 7x7-inch base plate
• Compatible with closed dome radars, small satdomes (16 inch or smaller), 18–24 inch closed dome radars, satdomes, and cameras
• Marine-grade aluminum construction, primed and powder coated black
• Oval hollow mast section for easy cable management
• Compact 7x7-inch footprint ideal for limited mounting space
• Light bar compatible — supports LED light bars, spreaders, and floodlights
• Modular design allows top plate replacement without replacing the full mount
• Numerous optional accessories available: wedges, hinges, spreaders, LED light bars, floodlights
• Includes base fastener seals, top gasket, light bar positioning dowel, and installation instructions
• A Seaview Modular Top Plate is required and sold separately
• NOT suitable for use with an open-array radar
