Aft-Leaning Modular Radar Mount - 36"

Seaview Aft-Leaning Modular Radar Mount - 36"

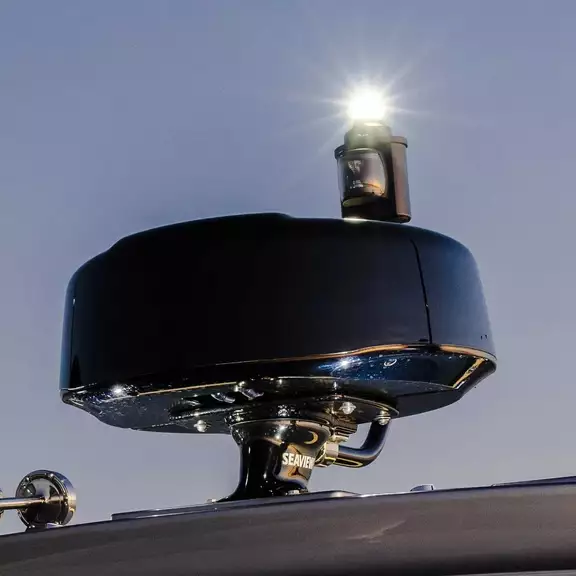

The Seaview PMA3610M1 is a 36" aft-leaning modular radar mount engineered specifically for marine environments. Designed to position radars and satellite domes at different heights, it helps prevent interference between devices, clear obstructions, or simply achieve a preferred aesthetic on your vessel. Constructed from marine-grade aluminum with a primed and powder-coated brilliant white finish, the mount is built to withstand the demands of life on the water.

The modular system excels in versatility: accessories including lightbars, spreader kits, hinges, wedges, and more can be added at any point, making it a cost-effective long-term solution. When you upgrade or change your electronics, you simply swap the top plate rather than replacing the entire mount assembly. The hollow oval mast section routes cables cleanly and discreetly, while the compact base footprint makes installation possible even where deck space is at a premium.

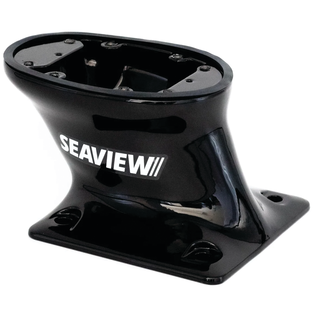

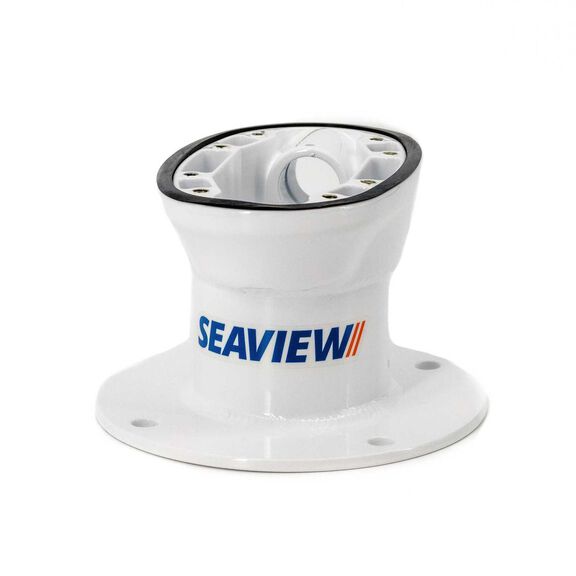

Compatible with 18–24" closed dome radars. Note: this mount is NOT suitable for use with open-array radars. A Seaview Modular Top Plate is required and sold separately. Available in mount heights of 5", 10", 12", 16", 18", 24", and 36", and in White or Black finishes across the modular mount family.

Key Features

• Easy 3-step modular system for quick installation
• Aft, forward, vertical, and dual mount design options available in the family
• Add-on accessories including lightbars, spreader kits, hinges, and wedges
• Cost-effective modular design — modify without replacing the entire mount
• Compact base ideal for limited mounting space
• Hollow oval mast section enables clean, easy cable management
• Marine-grade aluminum construction, primed and powder-coated brilliant white
• Compatible with 18–24" closed dome radars
• NOT suitable for open-array radars
• Requires a Seaview Modular Top Plate (sold separately)
