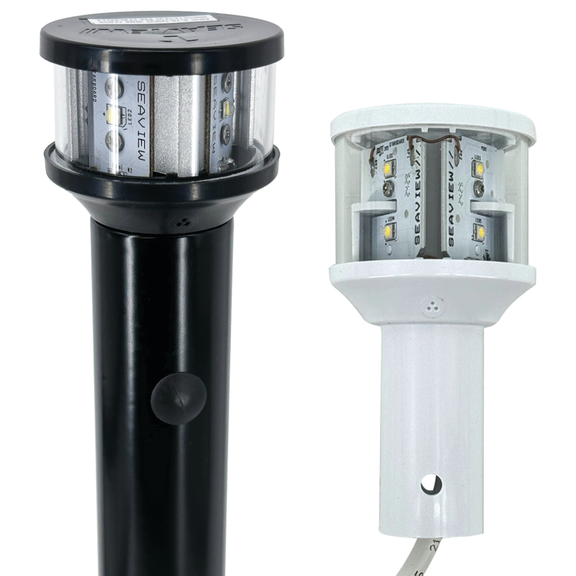

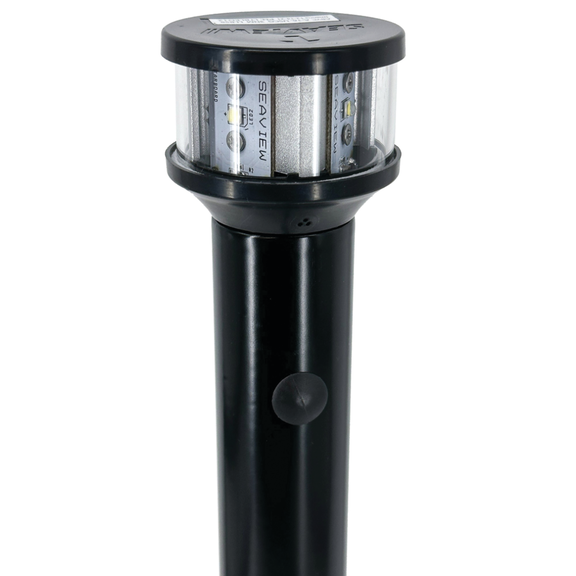

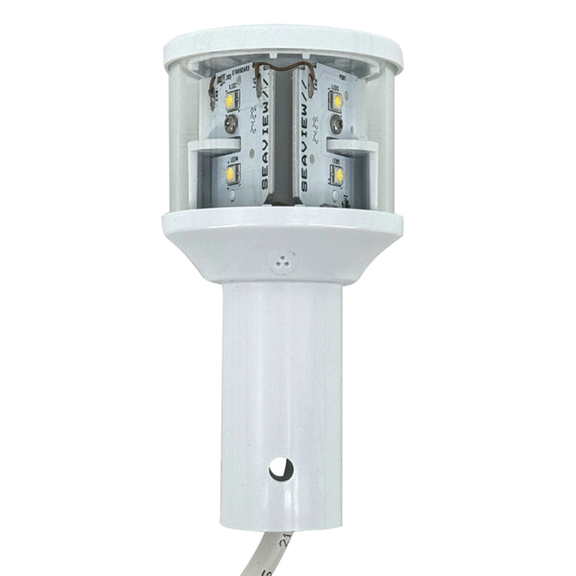

3 NM Round LED Masthead & All-Round 24V C-5 Nav Light - White

Seaview 3 NM Round LED Masthead & All-Round 24V C-5 Nav Light - White

The Seaview LTBLED24C5 is a 24V, ABYC C-5 certified round LED combination masthead and all-round navigation light engineered for reliable performance in demanding marine environments. Certified by the USCG and compliant with ABYC C-5 standards, this light is approved for use on sail and power-driven vessels up to 20 meters (65.6 ft.) in length. It delivers a clear 3 nautical mile visibility range, operating as either a 225° masthead (steaming) light or a 360° all-round white light, making it a versatile dual-function fixture in a single compact unit.

Unlike standard navigation lights, this Seaview LED light features a glass lens rather than a plastic one, along with rubber gaskets to keep water out and an integrated Gore-Tex patch that vents and breathes to prevent internal fogging. The IP67-rated watertight housing ensures superior resistance to spray and immersion, and the LED technology provides energy-efficient, long-lasting performance with reduced operational costs over time. The round form factor is designed to fit neatly inside the top of any Seaview modular Light Bar, which in turn mounts to Seaview's radar, GPS, or satellite communication instrument mounts.

Installation is straightforward thanks to the included 7-foot wire leads, and the compact round design integrates seamlessly into a wide range of vessel configurations. Whether retrofitting an existing navigation light or outfitting a new vessel, the LTBLED24C5 provides a safe, compliant, and efficient solution for nighttime and low-visibility navigation.

Key Features

• ABYC C-5 certified and USCG approved for vessels up to 20 meters (65.6 ft.)
• 3 NM visibility range — 225° white masthead beam or 360° all-round white beam
• IP67 watertight rating for superior waterproof protection
• Glass lens with gaskets and Gore-Tex vent/breathe patch to prevent fogging
• 24V DC input voltage
• Molded polymer housing in white
• Designed to mount inside any Seaview modular Light Bar
• Includes 7 feet of wire leads for easy installation
• Suitable for both sail and power-driven vessels
• 3-year limited warranty on Seaview lighting products
• LED technology for energy efficiency and long service life
