Mast Mount for FLIR M100/M200 Series

Seaview Mast Mount for FLIR M100/M200 Series

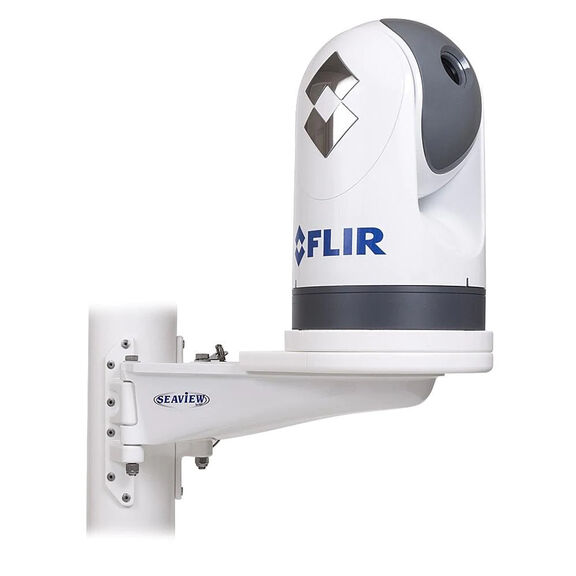

The Seaview SM14F2 Mast Mount is purpose-built to give your FLIR M132 or M232 (Hiko) thermal camera a clear, unobstructed view from your mast. By elevating the camera above deck-level obstructions, you gain maximum thermal imaging range and situational awareness whether navigating coastal waters or offshore passages.

Every SM14F2 is fabricated from high-grade marine aluminum and treated with Chem-Film — the same surface preparation process used by Boeing — before receiving a 3-part epoxy prime and powder coat topcoat. This multi-stage finishing system creates an exceptionally durable, corrosion-resistant surface capable of withstanding prolonged saltwater exposure without degradation.

The mounting feet are secured to the mast with six rivets per foot, providing a heavy-duty, vibration-resistant connection. The solid under-body construction adds rigidity while simultaneously routing and hiding cables for a clean, professional installation. The mount is compatible with masts measuring 2 5/8 inches or larger in diameter.

Installation hardware includes adapter plate #SVAF3, left and right mast mount feet (SMMBL-2 / SMMBR-2), 3/8-16 x 5" mounting bolts, 5/16 x 1" adapter plate bolts, #12 x 1" camera screws, rivets, a rubber grommet, and lanyards. Seaview recommends Sudbury Elastomeric Marine Sealant for sealing mount holes and Tef-Gel or equivalent anti-corrosion treatment on all fasteners.

Dimensional drawings are available for download directly from Seaview's website. The SM14F2 is backed by the manufacturer's full warranty and is sold by authorized Seaview dealers.

Key Features

• Designed for FLIR M132 and M232 (Hiko) thermal cameras
• Fits masts 2 5/8 in. or larger in diameter
• Marine-grade aluminum construction for maximum strength and weight efficiency
• Chem-Film pre-treatment (Boeing process) plus 3-part epoxy prime and powder coat finish
• Six rivets per foot secure heavy-duty mounting feet to the mast
• Solid under-body construction improves rigidity and hides cables
• Includes adapter plate #SVAF3 and all mounting hardware
• Weight: 6 lbs; Dimensions: 6 × 12 × 20 in
