Performance Gen2 Angled Wedge Base + LED Light

Seaview Performance Gen2 Angled Wedge Base + LED Light

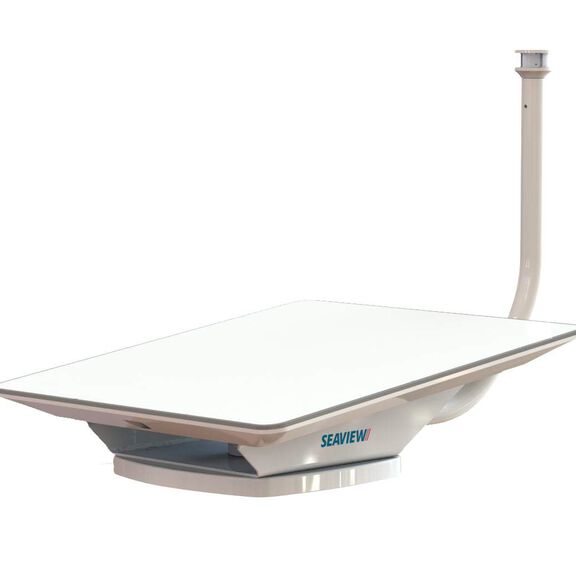

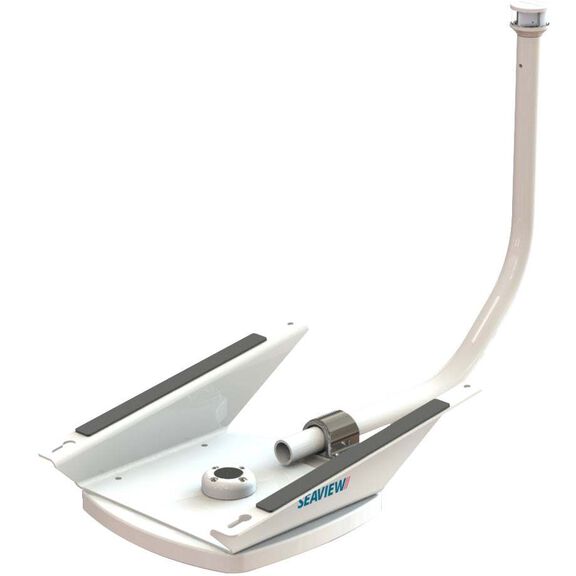

The Seaview SVSLWBLEDC5 wedge base kit is engineered for Starlink Performance Gen2 (formerly Flat High Performance) antenna installations in space-constrained locations where added height is not possible, yet a compliant LED navigation light is still required. This complete kit includes all necessary Seaview components to mount the Starlink Performance Gen2 antenna on an 8° wedge base along with a 3NM C5 certified LED combination masthead all-round navigation light.

The LED light is IP67 watertight rated and comes with 7 feet of 12V DC wiring, making it USCG approved for vessels up to 20 meters (65.6 feet) in length. The aluminum light bar and 8° wedge base have been purpose-built for the marine environment, finished with a 3-part polyurethane prime and powder coat to deliver the best possible corrosion resistance and long-term durability.

The wedge base serves as a direct replacement for the gray wedge base that may or may not come with the Starlink Performance Gen2 antenna. Pre-drilled mounting holes allow hardware to fasten directly to the wedge, and the base is drilled and tapped for the CG30PW (white) or CG30PB (black) cable seal included with each Seaview wedge base. Starlink connectors do not need to be cut during installation.

The kit includes an ADAR1DMLTB top plate, SVSLWB wedge base, LTBR light bar, LTBLED12C5 navigation light, cable seal gland, and mounting hardware — everything needed for a professional, integrated installation.

Key Features

• Designed to fit the Starlink Performance Gen2 (formerly Flat High Performance) antenna
• 8° wedge angle optimizes antenna positioning in height-restricted installations
• Pre-drilled mounting holes allow hardware to fasten directly to the wedge
• Drilled and tapped for CG30PW (white) or CG30PB (black) cable seal included with each wedge base
• No need to cut Starlink connectors for installation
• 3NM C5 certified LED combination masthead all-round navigation light included
• LED light is IP67 watertight rated with 7-foot wire lead (12V DC)
• USCG approved for vessels up to 20 meters (65.6 feet)
• Aluminum light bar and wedge base with 3-part polyurethane prime and powder coat finish
• Specifically engineered for demanding marine environments

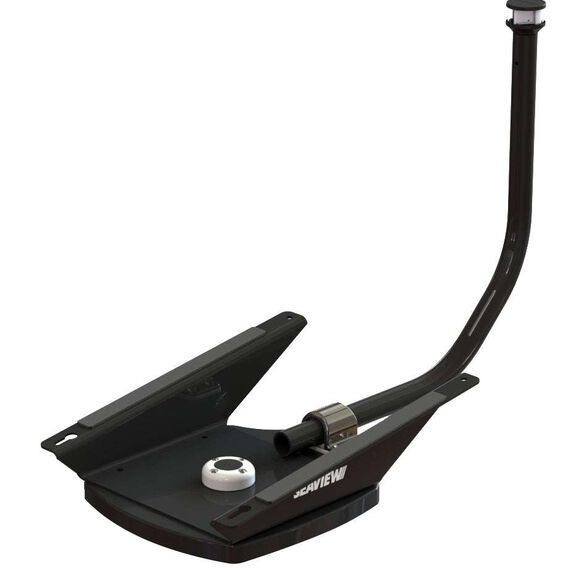

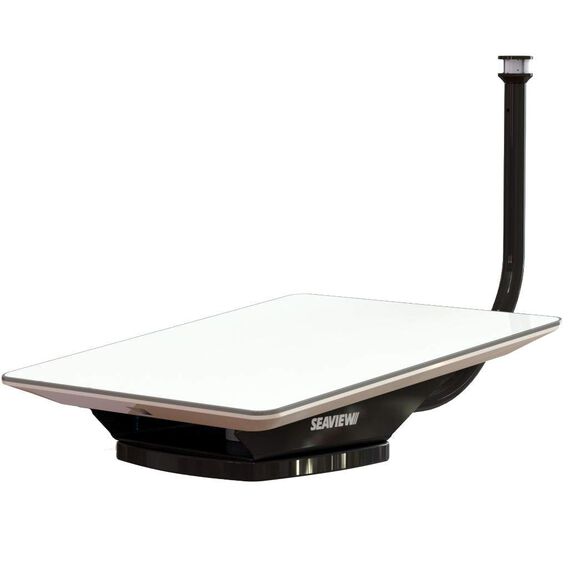

• Available in white or black
