This product is not longer available, we recommend a similar product instead:
Clearance
DST800 NMEA 2000 Thru-Hull Traditional Transducer
Model #
12019311
Mfg #
22098552
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Get 5X West Advantage Points on all purchases for a limited time! Not a rewards member? JOIN NOW
DST800 NMEA 2000 Thru-Hull Traditional Transducer
Model #
12019311
Mfg #
22098552
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+

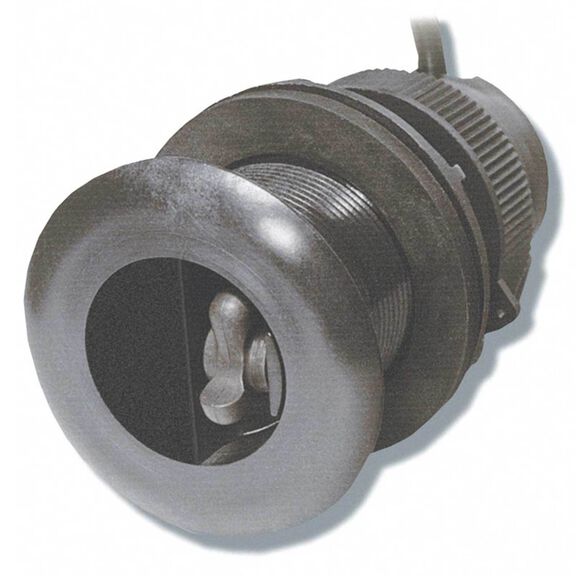

The DST800 is a smart and compact, thru-hull , 235kHz multisensor that offers depth, speed and temperature data.
This single unit, multisensor concept provides boaters with a cost effective alternative, which only requires one hole to be placed in the hull. Network ready, the DST800 easily connects via NMEA 2000 with NSS, NSE or NSO systems and instrument displays. Digital signal processing inside housing provides data to a chartplotter, radar screen or digital display, eliminating the need for a dedicated depth sounder.
Specifications
- Transmit Power: 100W (RMS)
- Beamwidth: 10° fore/aft x 44° port/starboard
- Frequency: 235kHz
- Max. Depth: 330'
- Hole Diameter for Installation: Single 51 mm / 2" hole thru-hull mounting
- NMEA Interface: NMEA 2000
- Dimensions: 2.94" Flange, 4.87" overall length
- Material: Plastic
Type
Thru-Hull
Beam
10x40 Degrees
Frequency
235kHz
Material
Plastic
Maximum Depth
330 Feet
Sonar
Depth
,
Speed
,
Trip Log
,
Temperature
Type
Thru-Hull
