This product is not longer available, we recommend a similar product instead:

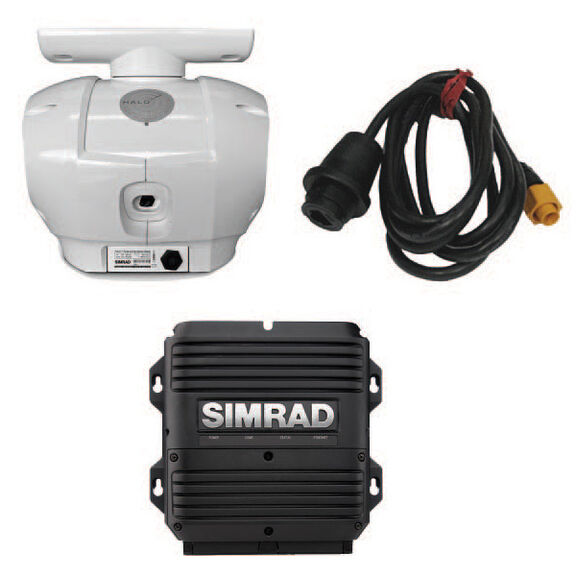

HALO 3'/4' Pulse Compression Radar Pedestal with Interface Box and 10 Meter Cable
Model #
18057653
Mfg #
000-11468-001
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
HALO 3'/4' Pulse Compression Radar Pedestal with Interface Box and 10 Meter Cable
Model #
18057653
Mfg #
000-11468-001
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+

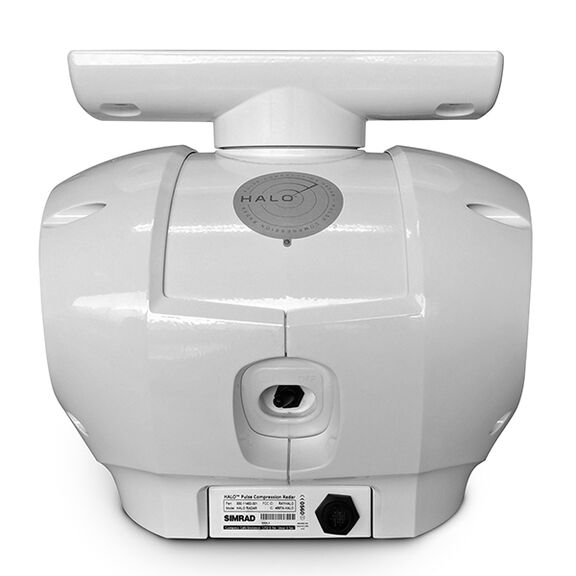

This pedestal combines with the HALO 3' or 4' array to build a complete HALO radar system.
How To Order

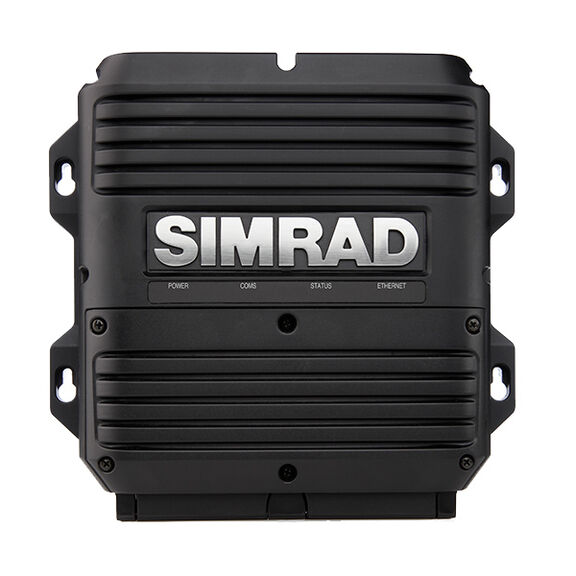

For a complete system you will need an Array and a Pedestal, which includes an RI-12 Radar Interface Box and a 10-meter Radar Cable. See the Array pages for Key Features and Specifications for all of the HALO radar models.
| Type | Maximum Range | Antenna Width | Horiz. Beamwidth | Dimensions | Weight | Model |
|---|---|---|---|---|---|---|
| Halo™-3 Array | 48nm | 3 1/2' | 2.4°, 2.1°/1.9°/1.6° w/Beam Sharpening | 44 3/8"W x 5 5/16"H x 7 1/4"D | 9lb. | 16478414 |
| Halo™-4 Array | 64nm | 4' | 1.8°, 1.6°/1.4°/1.2° w/Beam Sharpening | 56 3/8"W x 5 5/16"H x 7 1/4"D | 10.8lb. | 16478422 |
| Halo™-6 Array | 72nm | 6' | 1.2°, 1.1°/0.9°/0.8° w/Beam Sharpening | 80 1/4"W x 5 5/16"H x 7 1/4"D | 14.3lb. | 16478430 |
| Halo™-3/Halo™-4 Pedestal Pack | — | — | — | 12 3/4"W x 11 1/2"H x 13 3/8"D | 41.5lb. | 18057653 |
| Halo™-6 Pedestal Pack | — | — | — | 12 3/4"W x 11 1/2"H x 13 3/8"D | 41.5lb. | 18057646 |
Type
Pedestals
,
Interface Boxes
Dimensions
12 3/4" Width x 11 1/2" Height x 13 3/8" Diameter
Type
Pedestals
,
Interface Boxes
Warranty
Two Years
Weight
41.5 Pounds
