Seaview RW46 4 Degree Closed Dome Direct Mount Radar Wedge

Seaview RW46 4 Degree Closed Dome Direct Mount Radar Wedge

The Seaview RW46 is a 4-degree direct mount radar wedge used when attaching a closed dome or open array radar directly to a vessel's cabin top or radar arch, without the need for a forward, vertical, or aft leaning radar mount. Positioned between the mounting surface and the radar, the wedge angles the radar 4 degrees below the horizontal to compensate for deck angle or the planing attitude of the boat, improving overall radar performance.

This wedge is part of Seaview's RW4-1/2/6 Series and is specifically pre-drilled to fit 24" Furuno DRS4D/DRS4DNXT domes, 15" JRC domes, 24" Sitex (T761) domes, and the Simrad DX64S. It mounts directly between the radome and the mounting surface when extra height is not required, making it ideal for installations where a low-profile solution is preferred.

Made from marine-grade King StarBoard polymer or injection-molded ASA plastic (RW42), the wedge is built for long-lasting durability in harsh marine environments. The pre-drilled design allows for simple, quick, and hassle-free installation specific to your radar model.

Key Features

• 4-degree wedge angles radar below horizontal to compensate for deck angle or planing attitude
• Designed for direct mount applications — attaches directly between the radar and mounting surface

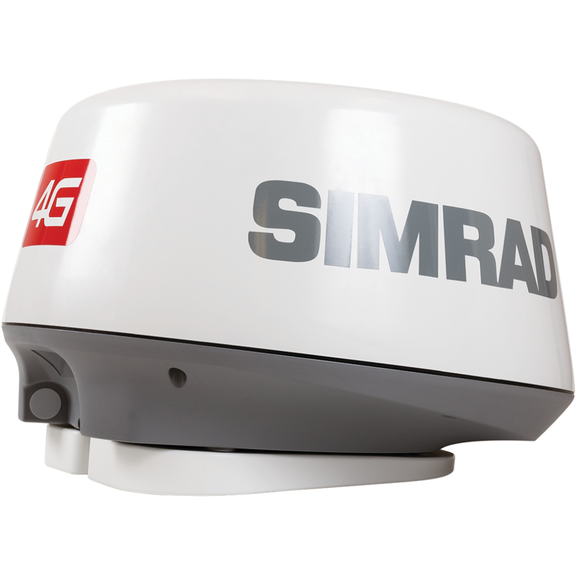

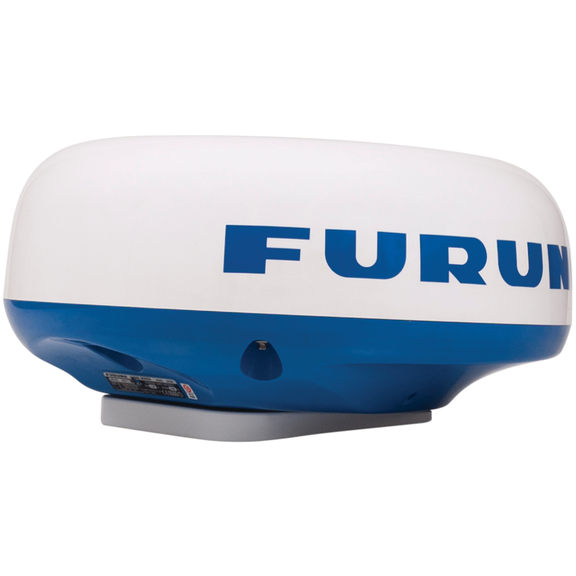

• Compatible with Furuno 24" DRS4D/DRS4DNXT, 15" JRC, 24" Sitex (T761), and Simrad DX64S radomes
• Part of the RW4-1/2/6 Series — also fits Geonav 24", Lowrance 24", and Northstar 24" radomes

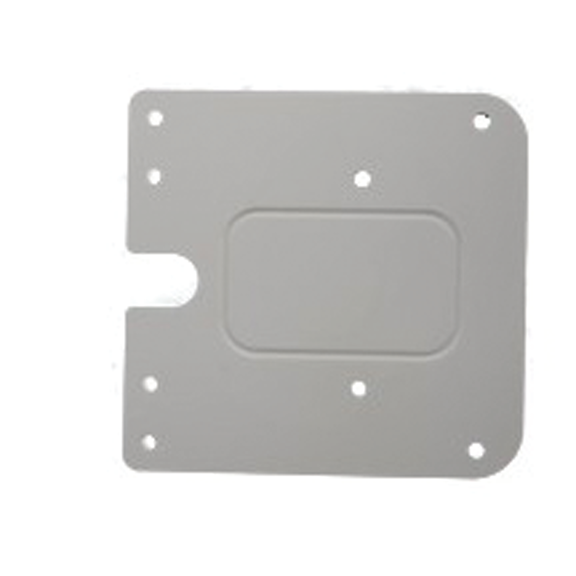

• Pre-drilled to fit specific radar models for quick and hassle-free installation
• Constructed from marine-grade King StarBoard polymer or injection-molded ASA plastic
• Eliminates the need for a forward, vertical, or aft leaning radar mount
• White finish; approximately 2 × 13 × 13 inches, 4 lbs
