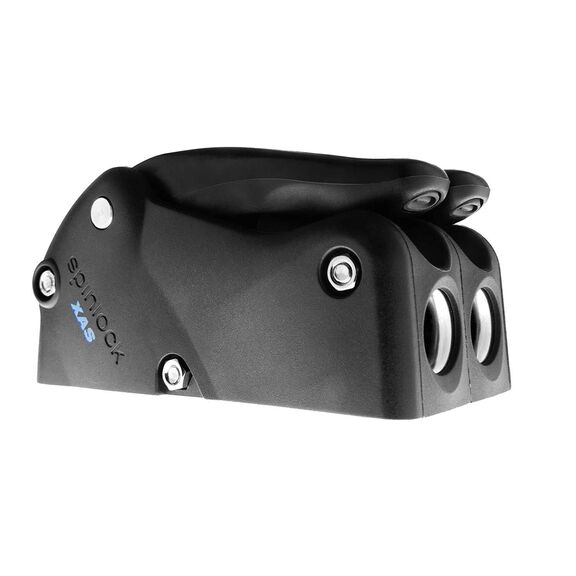

Double Powerclutch, 5/32"-5/16" Line Dia.
Model #
1881234
Mfg #
XAS0408/2
$199.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
3M
$0.19
-
$9.99
Price reduced from
$2.99
to
-
Price reduced from
$9.99
to
Select Items on Clearance
A reliable design for performance sailing, with a minimum of moving parts. Powerful enough to handle high loads, but gentle enough to avoid damaging your lines. Positive one-way locking clutches feature easy release and relocking. The automatic clutches can be overridden with a powerful manual lock for heavy-weather loading. The XAS series features the successful XA gripping mechanism, modified to give powerful and controlled load-holding and release. XAS Cams handle 200lb. more SWL than older XA clutches with identical footprint.The XAS series is extremely comfortable and durable, with a modern modular body and handle design.
- Application: Racers up to 27' and cruisers up to 35'
- Height: 2 3/4" (69mm) Length: 5 3/16" (134mm) Width: Single: 1 1/2" (39mm); Double: 2 9/16" (65mm); Triple: 3 5/8" (91mm)
- Hole Spacing: 3 1/16" centers (79mm) Fasteners: Two 1/4" (6mm) FHMS
- Line Diameter: XAS 0406 fits 5/32" to 5/16" (4-8mm) line. Safe Working Load 990lb. (450kg). XAS0612 fits 1/4" to 1/2" (6-12mm) line. Safe Working Load 1270lb. (575kg)
- Five year warranty
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Application
Clutch
Diameter
5/32 to 5/16 Inches
Height
2 3/4 Inches (69mm)
Length
5 3/16 Inches (134mm)
Mounting Hardware
Four 1/4" (6mm) Flat Head Machine Screws
Safe Working Load
990 Pounds
Type
Double
Weight
17.5 Ounces
Width
2 9/16 Inches (65mm)
