Front-Mount Helm Pumps
Model #
15747306
Mfg #
UP20FM
$599.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Select a Product:

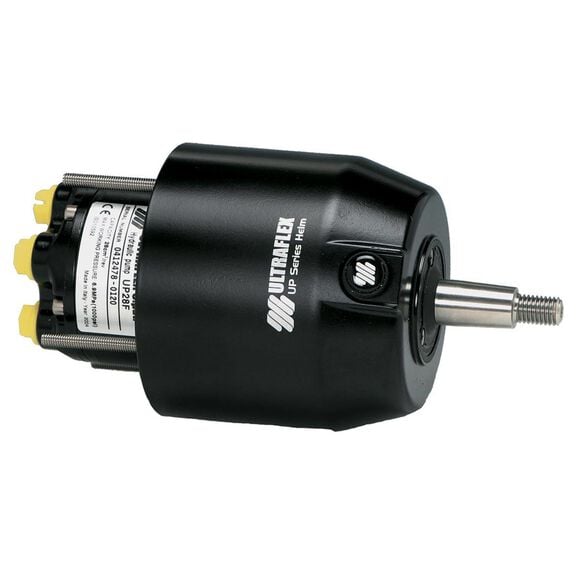

UP20FM 1.2 cu in (20cc) Front-Mount Helm Pump
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
FASCO FASTENER
$0.74
-
$62.99
Price reduced from
$4.39
to
-
Price reduced from
$62.99
to
Select Items on Clearance
UFLEX Front Mount Helm Pumps are designed to easily retrofit your existing hydraulic steering system.
Front-mount helms are direct “drop-in” replacement for competing helms, with compact design, ball bearing piston races, built-in lock valve for positive rudder lock and integral relief valve for over-pressure protection. Easily accessible lock valve and shaft seal for replacement. Cast iron rotor for greater durability and longer life. 90° adjustable fittings for 3/8" tube are included. Offered in 1.2, 1.7, 2.0 and 2.4cu.in. displacements. UFLEX covers their helm pumps with a Two-Year LImited Warranty.
Specifications
- Dimensions: UP20FM Drawing, UP28/33/39FM Drawing
- Cutout: 3" dia.
- Hose: 1,000psi
- Steering Wheel Shaft: 3/4" tapered
- Relief Valve Setting: 1,000psi
| Helm | Displacement/Revolution | Number of Pistons | Relief Valve Setting | Maximum Wheel Diameter | Model |
|---|---|---|---|---|---|
| UP20FM | 1.2cu.in. (20cc) | 5 | 1,000psi (70 bar) | 20" | 15747306 |
| UP28FM | 1.7cu.in. (28cc) | 5 | 1,000psi (70 bar) | 28" | 15747314 |
| UP33FM |
2.0cu.in. (33cc) | 7 | 1,000psi (70 bar) | 28" | 15747322 |
| UP39FM |
2.4cu.in. (39cc) | 7 | 1,000psi (70 bar) | 28" | 17042821 |
Application
Generic
Dimensions
3/4" Tapered Shaft
,
9"L Overall x 5" Diameter
Mount Type
Included
Type
Steering Helms
Warranty
Two Years Limited
