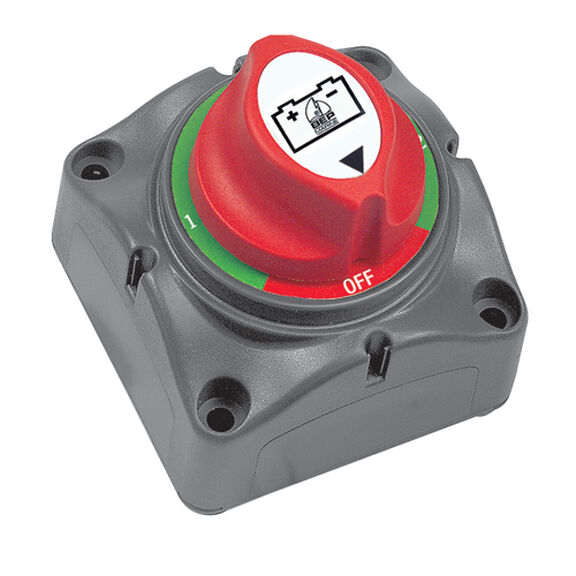

701-S Mini Selector Battery Switch
Complete Your Purchase
When compact isn’t compact enough, the 701-S Mini Selector Switch is just the answer
Marinco designed a lot of unique features into the 701-S selector switch. Its smaller size and patented contour lock system are features that stand out and allow the switch to be used as a stand-alone unit, or locked together with other 700 series switches. By turning the control knob counterclockwise 45° it can be removed providing an added level of security and service lock-out. Available interchangeable labeling system allows customization for a full range of applications. Removable side plates on four sides allow for easy access of up to 1/0 cables. A rear cover insulates the rear terminals from possible short circuits and meets ABYC requirements. The 701 can be either surface or recess mounted.
Key Features
- Super compact design allows installation for limited space applications.
- Can be used as a stand alone or in locked to other 700 series components
- Two mounting options; surface of recessed
- Corrosion resistant high temperature fiber reinforced plastic body is designed to stand up to marine environment
- Removable knob adds a level of security and offers a service lockout feature
- Tinned copper terminal studs offer excellent conductivity and corrosion resistance
- Meets UL 1107 ignition protection standards; can be installed in engine rooms of gasoline powered boats
- Will NOT protect sensitive electronics from current spikes
- Two-year warranty
Specifications
- Switch Positions: 4
- Battery Combine: Yes
- Alternator Field Disconnect: No
- Maximum Voltage: 48V
- Continuous Rating: 200A
- Intermittent Rating (duration): 300A (5min)
- Cranking Rating (15Sec): 1000A
- Battery Inputs: 3
- Cable Size to meet ratings: 1/0 AWG
- Mounting Holes: #10
- Terminal Stud size: (3) 3/8”
- Dimensions: 2 3/4" x 2 3/4" x 3"
