ColdMachine VD-150 Small Vertical Evaporator
Complete Your Purchase
DOMETIC ColdMachine VD-150 Small Vertical Evaporator
Top-of-the-line systems designed for complete reliability, even in the toughest tropical weather conditions, updated with a quick fit system for easy do-it-yourself hookup and removal without the assistance and expense of a refrigeration tech. Since pioneering marine 12V refrigeration systems more than 25 years ago, Adler/Barbour has continued to use the latest available technology to make these systems the most reliable of their kind. Both the Air-Cooled CU-100 and Air/Water-Cooled CU-200 use the high-performance Danfoss BD50F compressor, with up to 25% better cooling performance than the BD35F in the same size footprint!
How to Create a ColdMachine or Super ColdMachine System
Now you can custom configure a refrigeration system to your boat, taking into account available ice box space and the conditions in which you’ll use your boat. First, select the compressor/condensing unit that matches your performance requirements: the Air-Cooled CU-100 is excellent for temperate climates, while the Air/Water-Cooled CU-200 is the one to choose if you’re headed for the tropics.
Then, select an evaporator style that matches your box best. For installation flexibility, compressors may be installed up to 15' from the evaporator plate. Dimensions are listed for each component. Note: The CU-100 and CU-200 Cold Machines cannot be used with evaporators manufactured prior to January 2001. One-year warranty.

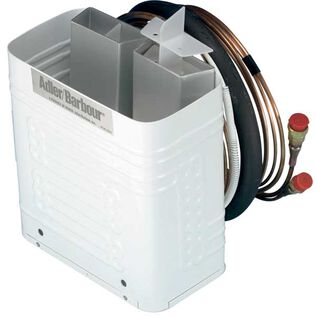

VD-150 Small Vertical Evaporator for CU-100 Air-Cooled ColdMachine and CU-200 Air/Water-Cooled Super ColdMachine Systems
For top-loading iceboxes. Cooling volumes up to approximately 9 cu.ft. with 3" of insulation.
- Dimensions: 11"H x 10-1/2"W x 6"D
- Weight: Approximately 12lb.
- Ice trays not included
- Supplemental Installation Guide for New Quick-Connect Couplings
Compatible with ColdMachine Condensers:
- CU-100 Air-Cooled ColdMachine Compressor, 7-1/2"H x 10"W x 11-1/8"D (Model 11861085)
- CU-200 Air/Water-Cooled Super ColdMachine Compressor, 7-1/2"H x 10"W x 11-1/2"D (Model 11861101)
