New

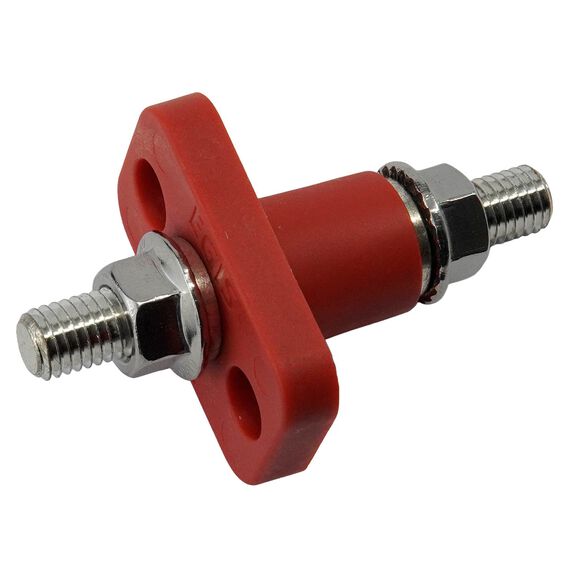

Feed Through Terminal, Red, M10 (3/8")
Model #
21976998
Mfg #
6250-141
$27.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
Feed Through Terminal, Red, M10 (3/8")
Model #
21976998
Mfg #
6250-141
$27.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
SEAFIT
$1.99
-
$2.99
Price reduced from
$11.49
to
-
Price reduced from
$16.49
to
EGIS MOBILE ELECTRIC Feed Through Terminal
Transfers High Current Power through bulkhead walls and decks. Base surface supports full sealing via bedding compound or customer supplied gasket. Tin Plated Copper Alloy Conductor.
Key Features
- All Stainless Steel Hardware with Self-Locking Fasteners
- Robust Design with Insert molded conductors and glass-filled composite insulators
- Stainless Steel Self-Locking Nuts, Mounting Face Can be Gasketed/Bedded for a Water-Tight Install
- Maximum Voltage: 80Vdc
- Maximum Amperage: 250 A
- M10 Nut Recommended Torque: 120 in-lbs (13.6 N-m)
- M10 Nut Maximum Torque: 140 in-lbs (15.8 N-m)
- Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
- Flex System Compatible with Flex interconnected busbars
- Base Material: Nylon 6 30% GF
- Ingress Protection Rating (Customer required to seal cut-out): IP66 / IP67 / IP6K9K
Compatibility
REPLACES BLUE SEA SYSTEMS #2204
