New

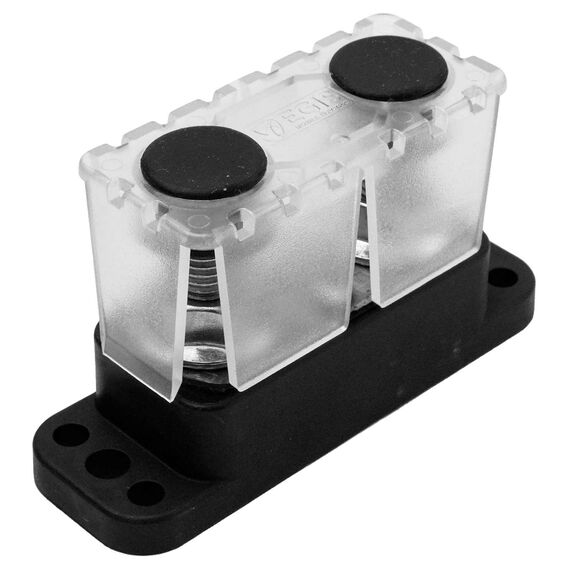

PowerBar Dual M10 (3/8) Studs - 200A w-Cover
Model #
21976816
Mfg #
6252-200
$24.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
PowerBar Dual M10 (3/8) Studs - 200A w-Cover
Model #
21976816
Mfg #
6252-200
$24.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
EGIS MOBILE ELECTRIC PowerBar Dual M10 (3/8) Studs - 200A w-Cover
Includes Transparent Cover that allows inspection of torque markings without removal, and provides break-away tabs for cable / terminal access while ensuring maximum protection against inadvertent shorts to adjacent parts. Stainless-Steel Self-Locking Hardware Ensures long term reliability and ease of installation. Tin-plated copper busbars deliver superior electrical performance with minimal voltage drop.
Key Features
- All Stainless Steel Hardware with Self-Locking Fasteners
- Insert Molded Busbar and Studs maximize the strength and durability of the finished installation. Flexible Mounting Screw Sizing to accept #10 (M5) or ¼” (M6) screws
- Height Compatible with other FLEX System Components for Simple Interconnecting with LINX Busbars
- Marine Grade Construction: Designed with high-temperature materials
- Maximum Voltage: 80Vdc
- Busbar Stud/Thread Size M8-1.25
- Screw terminal Size: #8-32
- M8 Nut Recommended Torque: 100 in-lbs (11.3 N-m)
- M8 Nut Maximum Torque: 120 in-lbs (13.6 N-m)
- Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
- Base Material: Nylon 6 30% GF
- Busbar Material: Tin Plated Copper
- Mounting Holes: 4x #10(M5) & 2x 1/4"(M6)
- Flex System Compatible with Flex interconnected busbars
Compatibility
REPLACES BLUE SEA SYSTEMS #2019
