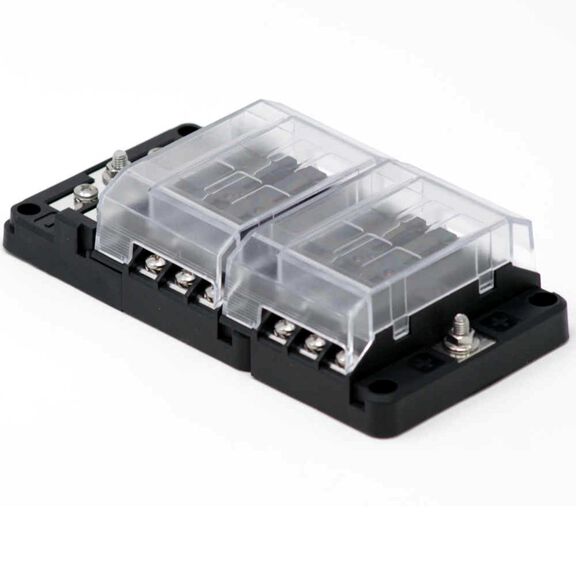

EGIS MOBILE ELECTRIC RT Series 12 Position Fuse Block with Ground & LED Indication
Egis Mobile Electric RT series 12-position fuse blocks offer robust circuit protection, the convenience of blown Fuse LED indicators, and accept ATO-style fuses from 1-40 Amps. Two extra fuse slots for every 6 fuses accommodate onboard spare fuses. Harsh environment design with stainless steel self-locking hardware and ian ncluded protective cover.
Meets circuit protection standards, allowing for installation nearly anywhere in your application.
Features:
- Corrosion-resistant stainless steel self-locking hardware
- The protective cover included contains recesses for optional weatherproof labels
- Contains four integrated spare fuse slots
- Easy to diagnose a blown fuse, LED indication
- Includes 12 terminal ground return. Ground block can optionally be relocated away from the fuse block for improved wire routing
- Nominal Voltage (Vdc): 12Vdc / 24 Vdc
- Voltage Range: 0-36Vdc
- Fused Circuits: 12
- 12 Position Ground Block Included: Yes
- Maximum Continuous Current Entire Block: 100 Amp
- Input Ring Terminal Hole Size: M5 / #10 / 1/4"
- Output Ring Terminal Size: M4 / #8
- 2 Spare Fuse Locations
- Blown Fuse LED Indicator: Yes
- Max Operating Temperature: 85 °C (185F)
- Min Operating Temperature: -40C (-40F)
- Mounting Holes Size: #8/M4
Amperage
100 Amps
Compatibility
REPLACES BLUE SEA SYSTEMS #5026
ISO Approved
IP20
Mounting Hardware
8x #8 Screws Included
Type
Fuse Block
Warranty
Four Years
