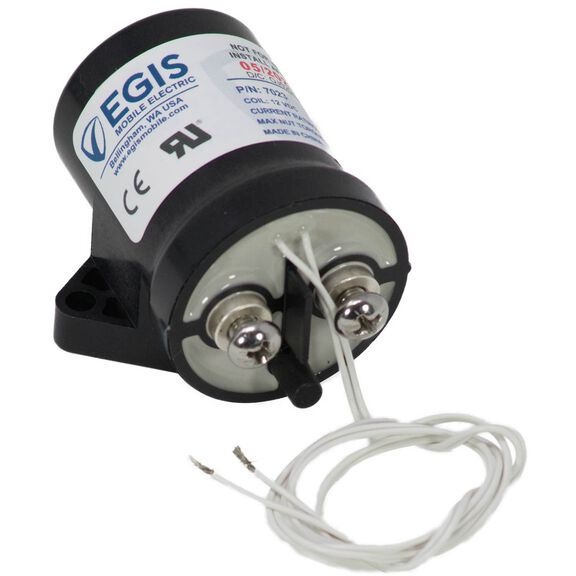

EGIS MOBILE ELECTRIC Contactor, 100A, 12V
Reduce Installation Costs and Weight by eliminating long cable runs to manual switches with robust remote switching of high-ampere engine and auxiliary loads. Ensure Flawless Operation for the Life of the Installation with a hermetically sealed contactor sealed against dust & moisture Intrusion.
Key Features
- Ignition-protected safe for installation in closed compartments with potential explosive gases
- High Electrical Switching Endurance delivers 6,000 cycles at 100A / 350V, 100,000 cycles at 100A / 14V
- High Interrupt Current Capability safely able to open in a locked starter situation (up to 1,250 A @ 14 Vdc)
- Bullet-proof Construction: Sealed device, high-temp materials for engine compartment applications, and stainless self-locking hardware.
- Operational Control Voltage Range: 8-16 Vdc
- Maximum Contact Voltage: 900Vdc
- Continuous Current: 100 Amps
- Contact Arrangement: SPST-NO (Form-A)
- Aux Contacts: Normally Open
- Rated Coil Resistance: 26 Ohms
- Ignition Protection: ISO-8846 / UL 1500
- Ingress Protection: IP67 IP6K/9K
- Max Operating Temperature: 85 °C (185F)
- Min Operating Temperature: -40C (-40F)
- Mounting Holes Size: #8/M4
Compatibility
REPLACES BEP #1002205
