New
Battery Disconnect Timer Switch, 120A
Model #
20800538
Mfg #
7615
$129.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
MADE IN THE USA
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
SEAFIT
$1.99
-
$2.99
Price reduced from
$11.49
to
-
Price reduced from
$16.49
to
ANCOR
$5.74
-
$46.99
Price reduced from
$32.99
to
-
Price reduced from
$46.99
to
Select Items on Clearance

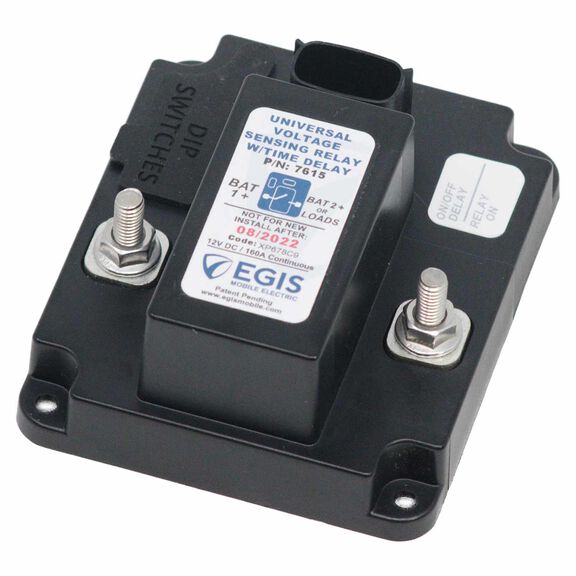

EGIS MOBILE ELECTRIC Battery Disconnect Timer Switch, 120A
Prevents auxiliary loads from draining batteries, maximizing operational readiness by eliminating dead batteries, and reducing the total lifetime cost of vehicle use. Ensures power remains available after the engine is off, automatically turning off after a preset time or when battery voltage is low. Protects sensitive on-board electronics via optional under- and over-voltage shutdown and start-event isolation.
Features:
- Flexible Application Options: Install as a Time Delay Relay, Battery Management Relay, Low Voltage Disconnect, or Simple Relay. On/Off trigger via external Ignition signal and/or alternator voltage sense, and adjustable low voltage protection levels increase flexibility
- Optional Voltage Sense On/Off Trigger & Adjustable Low Voltage Off Trigger
- Sealed plug/harness included. The combined timer & high-amp relay reduces installation time/costs. Optional output bus bar connects RT or CT fuse blocks
- Easy to set dip Switches On Top Side of the device
- Sealed plug/harness included. Combined timer & high-amp relay reduces install time/costs
- Nominal Voltage (Vdc): 12Vdc
- Continuous Current: 160 Amps
- Max 5 Minute Current: 240 Amps
- Cable Size To Meet Ratings: 2 AWG
- Maximum Cable Size: 2/0 AWG
- Terminal Stud Size: M6x1.0
- Hardware Material: Stainless Steel Self-Locking
- Ingress Protection: IP65
- Max Operating Temperature: 105 °C (221F)
- Min Operating Temperature: -40C (-40F)
- Operating Current (mA) Standby / Open: 1.3
- Overvoltage Protection: 16.0 Vdc
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Amperage
120 Amps
Compatibility
REPLACES BLUE SEA SYSTEMS #7615
ISO Approved
IP67
Mounting Hardware
4x #8 Screws Included
Type
Relay
Warranty
Four Years
