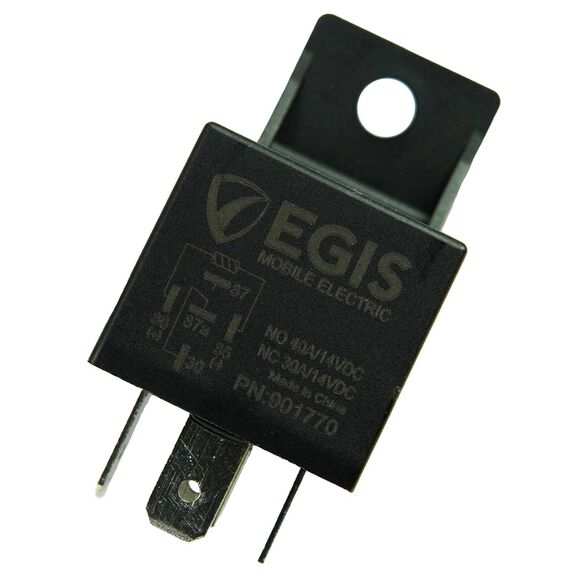

Relay Mini Tab Mount, 40 Amp
Model #
22330955
Mfg #
1770
$4.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
EGIS MOBILE ELECTRIC Relay Mini Tab Mount 40 Amp
Sealed Relay: Robust automotive-grade relay with reinforced mounting tabs ensures secure mounting. Incorporate The Highest Quality Materials for superior performance, and have a high 100,000 electrical switching cycle capacity. Enhanced Vibration and Shock Protection ensures greater reliability and a longer service life, while maintaining electrical system operational readiness.
Key Features
- Robust Drop-In Replacement ensures compatibility with legacy electrical systems.
- Mounting Tab vertically aligned for installation convenience and reinforced to withstand additional demands
- IP54 ingress protection
- Contact Arrangement: 1 Form C / 1 NO/NC
- Rated Current: 40A at 85C
- Min. recommended contact load: 0.5A at 12VDC
- Resistive load: 100,000 cycles at 40A, 13.5VDC
- Limited Max current: 40A
- Contact Material: Silver Tin Oxide
- Corrosive Gas IEC 60068-2-42: 10 days
- Ingress Protection: IP54
