New
RT Series 12 Position Fuse Block with LED Indication
Model #
20800603
Mfg #
8029
$42.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
RT Series 12 Position Fuse Block with LED Indication
Model #
20800603
Mfg #
8029
$42.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

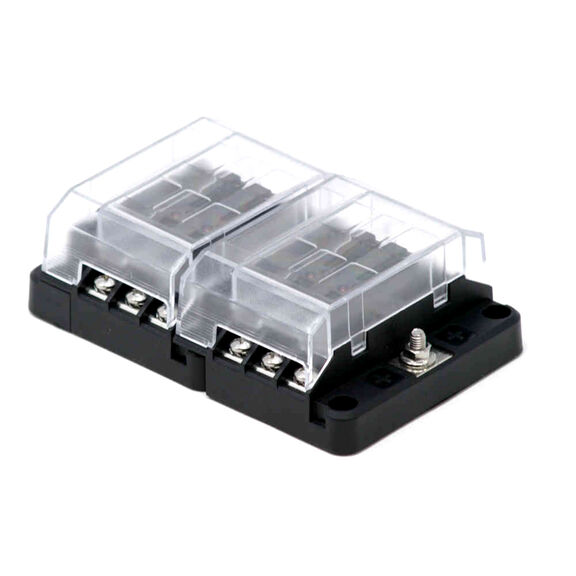

EGIS MOBILE ELECTRIC RT Series 12 Position Fuse Block with LED Indication
The Egis Mobile Electric RT series 12-position fuse block offers robust circuit protection and the convenience of blown-fuse LED indicators, and accepts ATO-style fuses from 1-40 Amps.
Two extra fuse slots for every 6 fuses accommodate onboard spare fuses. Harsh-environment design with stainless-steel self-locking hardware and an included protective cover meets circuit protection standards, allowing installation nearly anywhere in your application.
Features:
- Corrosion-resistant stainless steel self-locking hardware
- The protective cover included contains recesses for optional weatherproof labels
- Contains four integrated spare fuse slots
- Easy to diagnose a blown fuse, LED indication
- Constructed of high-temperature materials
- Nominal Voltage (Vdc): 12Vdc / 24 Vdc
- Voltage Range: 0-36Vdc
- Fused Circuits: 12
- 12 Position Ground Block Included: No
- Maximum Continuous Current Entire Block: 100 Amp
- Input Ring Terminal Hole Size: M5 / #10 / 1/4"
- Output Ring Terminal Size: M4 / #8
- 4 Spare Fuse Locations
- Blown Fuse LED Indicator: Yes
- Max Operating Temperature: 85 °C (185F)
- Min Operating Temperature: -40C (-40F)
- Mounting Holes Size: #8/M4
Amperage
100 Amps
Compatibility
REPLACES BLUE SEA SYSTEMS #5029
ISO Approved
IP20
Mounting Hardware
6x #8 Screws Included
Type
Fuse Block
Warranty
Four Years
