NavNet TZtouchXL TZT16X 16" Multi-Touch Multi-Function Display

FURUNO NavNet TZtouchXL TZT16X 16" Multi-Touch Multi-Function Display

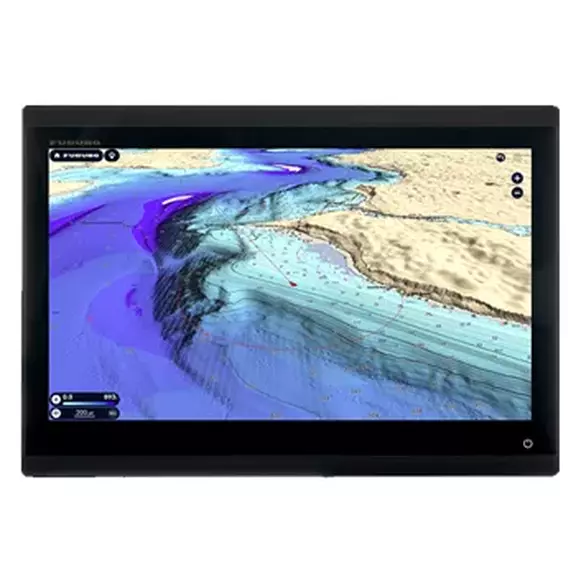

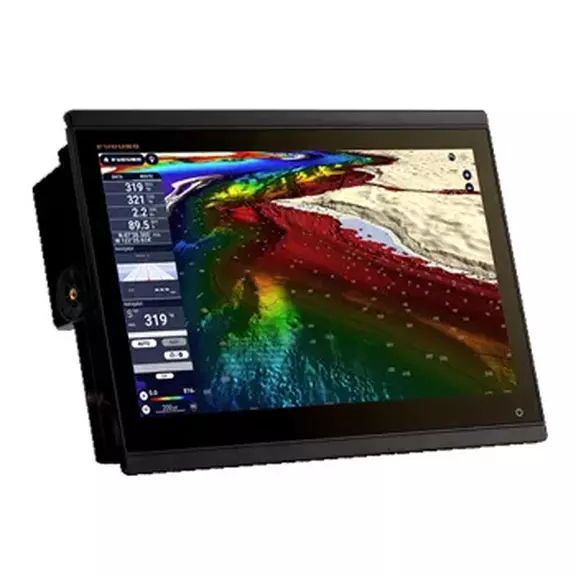

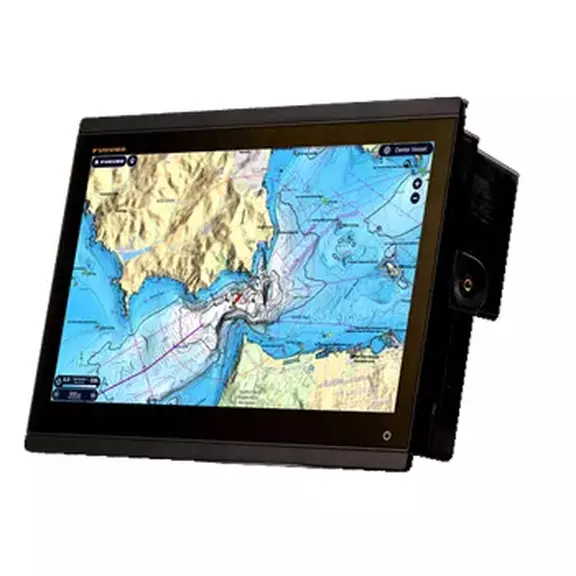

The FURUNO NavNet TZtouchXL TZT16X is a premium 16-inch all-glass multifunction display designed to deliver exceptional clarity and performance at the helm. Featuring a Full HD 1920x1080 IPS LCD with a brightness of 900 cd/m² and a seamless all-glass front panel, the TZT16X can be mounted side-by-side with other TZtouchXL displays for a clean, integrated helm appearance. Its powerful hexacore processor ensures rapid response across all chart, radar, and sounder functions.

The TZT16X incorporates a built-in dual-channel 1kW TruEcho CHIRP and CW fish finder capable of operating across a wide frequency range (40 kHz to 240 kHz), as well as built-in CHIRP Side-Scan covering 230kHz or 455kHz center frequencies to reveal fish targets and bottom structure in high definition on both sides of the vessel. A compatible transducer is required and sold separately. For even greater depth penetration, the optional 2kW/3kW DFF3-UHD TruEcho CHIRP Network Fish Finder or BT-5 Booster Box can extend output power up to 5 or 10 kW.

Navigation is enhanced by TZ MAPS, one of the most detailed chart systems available, offering raster and vector charts, satellite imagery, and bathymetric data downloadable directly to the MFD over Wi-Fi. BathyVision provides bathymetric contour resolution down to 3 inches — three times finer than competing systems — and can be overlaid with custom depth shading to create ultimate fishing charts. AI Routing intelligently plans routes accounting for vessel draft and navigational hazards. When paired with a Furuno NXT radar, Risk Visualizer delivers a 360° collision-risk overlay and AI Avoidance Route calculates a safe path around hazards, which can be sent to a compatible Furuno NavPilot autopilot with a single tap.

The TZtouchXL supports an enhanced edge-swipe user interface with up to ten custom Page Builder configurations and a 6-way screen split. NOAA vector charts for the entire U.S. are included via free unlock code. TZ Weather, compatible with software version 25 or later, provides both a free enhanced weather service and a premium high-resolution option. User data including marks, routes, and settings can be synced via TZ Cloud for access on any connected device. The display is compatible with the TZ Navigator, TZ iBoat iOS app, and NavNet Viewer/Remote/Controller mobile apps.

Key Features

• 16-inch Full HD all-glass IPS multi-touch display — 1920x1080, 900 cd/m²
• Built-in dual-channel 1kW TruEcho CHIRP and CW fish finder (40–240 kHz)
• Built-in 230kHz or 455kHz CHIRP Side-Scan with 750-foot range per side
• Internal GPS antenna — 72-channel, SBAS/WAAS, 10 Hz position update
• Powerful hexacore processor for rapid response
• TZ MAPS with BathyVision (3-inch contour resolution), AI Routing, and community edits
• Risk Visualizer and AI Avoidance Route (requires NXT radar)
• Up to 10 custom Page Builder configurations; 6-way screen split

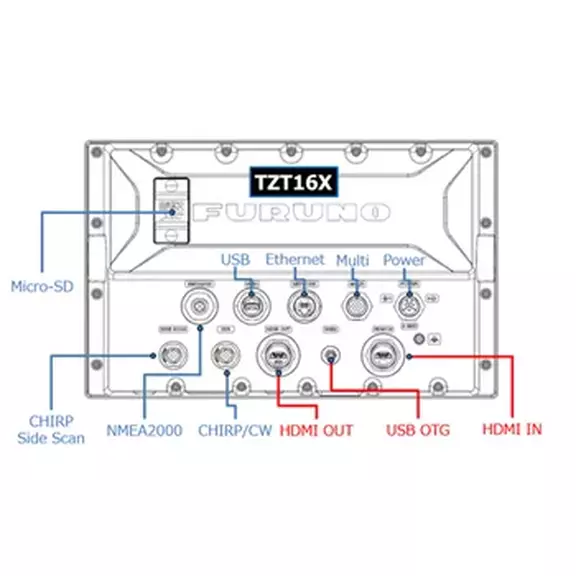

• NMEA 2000, NMEA 0183, Gigabit Ethernet, USB 3.0, HDMI video I/O, and Wi-Fi
• TZ Cloud sync; compatible with NavPilot, AIS, VHF, and solid-state Doppler radars
• Furuno exclusive Fish-It, Drift-It, and Follow-It fishing features
• IP56 waterproofing; operating range -15°C to +55°C
• Over-the-air (OTA) software updates via Wi-Fi
