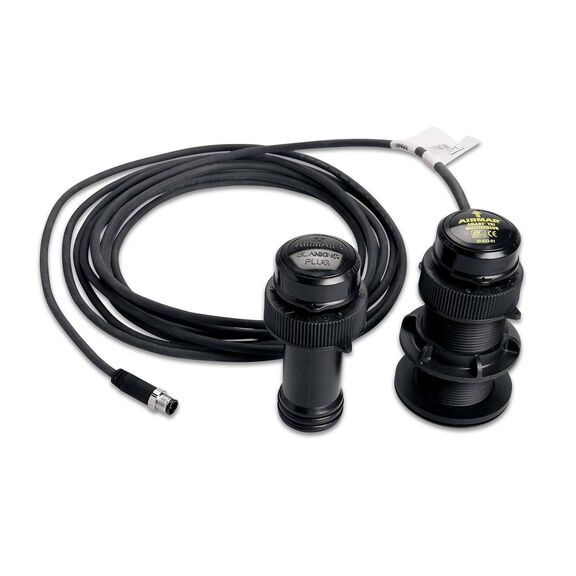

Airmar DST 810 Depth, Speed and Temperature Transducer

Airmar DST810 Smart Transducer is an enhanced thru-hull NMEA 2000® multisensor that combines precise depth, speed and temperature signals with attitude sensing for heel/trim and pitch/roll data.

This transducer can read depths to 330’ and offers fast 5 Hz water speed signal output for smoother visualization on compatible chartplotters or other displays. Wireless BLUETOOTH® connectivity makes it easy to manage calibration of sensor data through the Airmar Cast app interface. And the 235 kHz sensor operating frequency helps prevent mutual interference with other echosounder devices on the vessel. The transducer’s wide, fan-shaped beamwidth of 10x44 degrees enables it to find bottom even when installed on steep deadrise hulls or heeling sailboats.

Features:

• Thru-hull NMEA 2000® smart transducer combines depth, speed and temperature with attitude sensing for heel/trim and pitch roll data
• Wireless BLUETOOTH® connectivity enables easy calibration directly through the Airmar Cast app
• Advanced speed calibration accommodates multiple heel angles and speeds
• Fast 5 Hz digital signal processing offers smoother visualization on compatible chartplotters or other helm station displays
• Reliable depth-reading performance down to 330’
