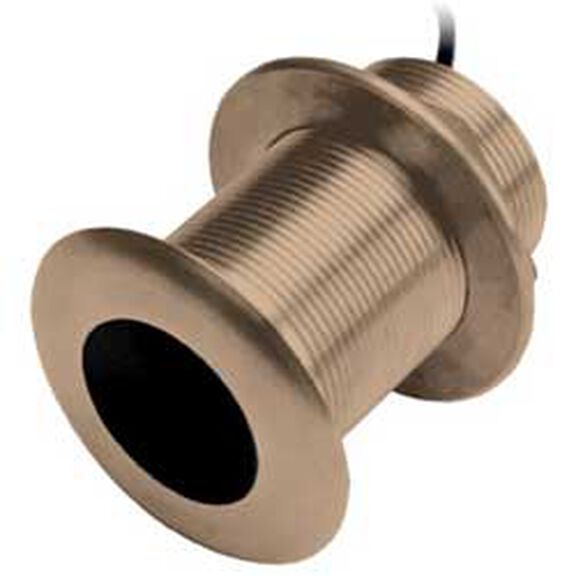

B619 20° Tilt Thru-Hull Dual Frequency Transducer
Model #
14390785
Mfg #
010-10217-22
$269.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
B619 20° Tilt Thru-Hull Dual Frequency Transducer
Model #
14390785
Mfg #
010-10217-22
$269.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Performs well at high speeds and is an excellent choice for fiberglass and metal hulls.
The B619 model has been the standard in low-profile thru-hull bronze transducers for many years. its large sensitive ceramics allow deep echosounding up to 900'. These nearly flush thru-hulls minimize drag as only 3/16" of the housing extends outside of the hull. The bronze B619 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted 20° to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. When using with the echo series fishfinders, transducer adapter cable part number 010-11947-00 is required.
Key Features
- Depth and temperature
- Fixed 20° tilted versions for 16° to 24° hull deadrise
- Right angle cable exit offers low headroom and protection when transducer is stepped on
- Included rubber washer that allows tightening of the hull nut to irregular hull surfaces
- Housings are ABYC H-27 compliant
- Bronze housing
- Boat Size: Up to 30'
Specifications
- Style: Thru-hull
- Cable Length: 30'
- Number of Pins: 8-pin
- Supported Deadrise Angle: 16°-24° degree deadrise
- Monitors: Depth and Temperature
- Material: Bronze
- Transmit Power: 500W (RMS)
- Frequency: 77/200kHz
- Max. Depth: 900'
- Beamwidths: 45°/15°
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Type
Thru-Hull
Beam
15x45 Degrees
Deadrise Angle
16 to 24 Degree
Frequency
77/200kHz
Material
Bronze
Maximum Depth
900 Feet
Sonar
Depth
,
Temperature
Transmit Power
500 Watts
Type
Thru-Hull
