This product is not longer available, we recommend a similar product instead:
Clearance
echoMAP™ 44dv Chartplotter/Sonar Combo with DownVü Scanning Sonar
Model #
17397761
Mfg #
010-01280-02
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.

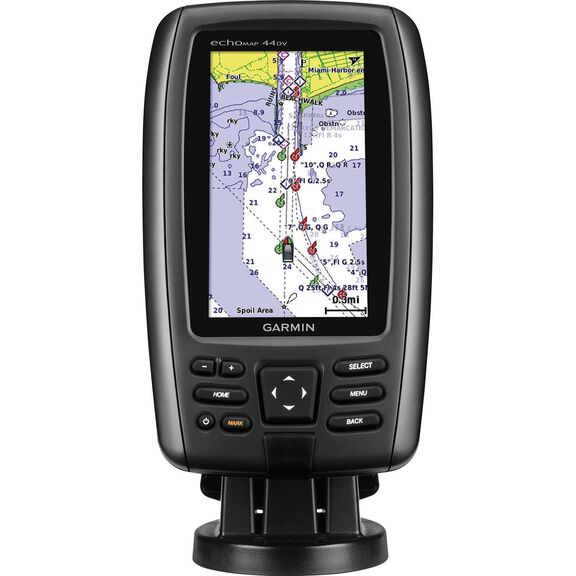

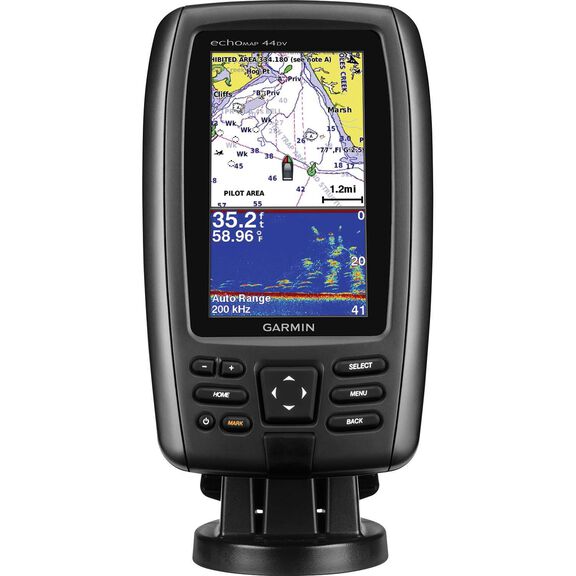

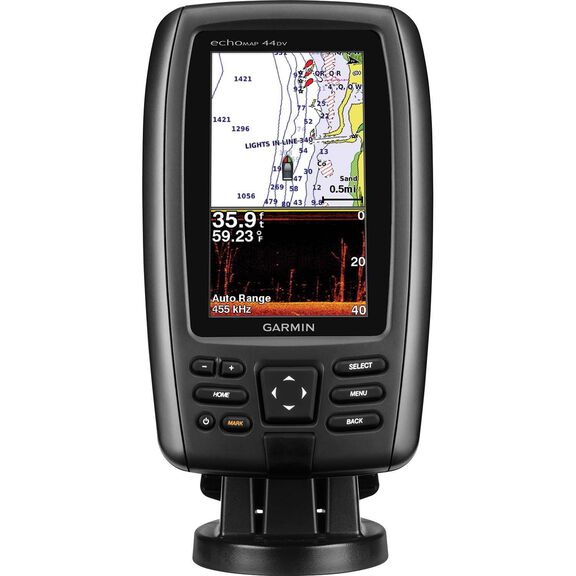

echoMAP™ 44dv Chartplotter/Sonar Combo with DownVü Scanning Sonar
Model #
17397761
Mfg #
010-01280-02
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
The Garmin echoMAP™ series of chartplotter/sonar pushbutton combos have built-in Garmin HD-ID™ traditional sonar plus DownVü that provides the clearest scanning sonar images on the water. They have the most accurate GPS for its class, and are available preloaded with BlueChart® g2 cartography. You simply can't buy a better chartplotter/sonar unit for the money.

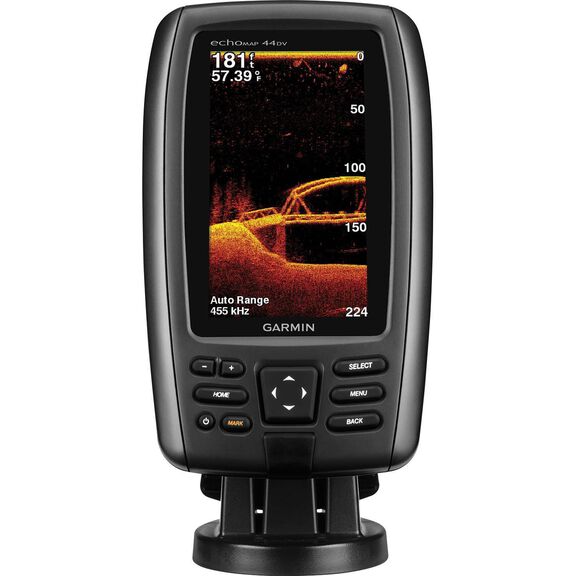

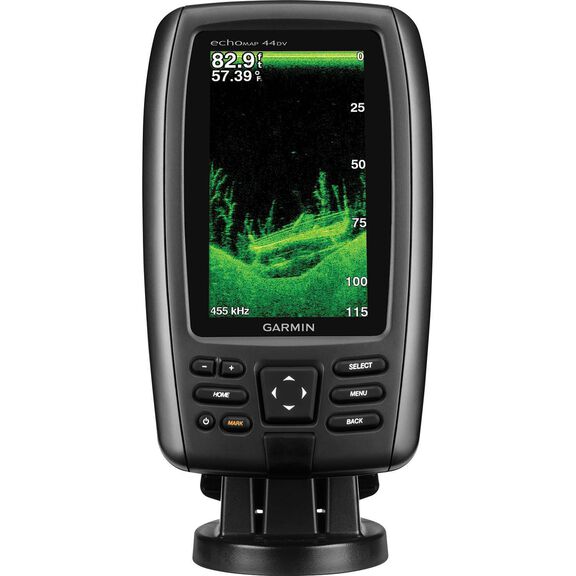

DownVü scanning sonar is built into echoMAP™ dv combos. DownVü gives you the clearest, nearly photographic sonar view of what’s below your boat. It uses an all-in-one HD-ID™ and DownVü transducer allowing you to have both traditional and DownVü images on your screen. Includes GT20-TM transducer (77/200kHz/DownVü, 4-pin).
Traditional Garmin HD-ID sonar and DownVü scanning sonar are combined into one transducer. Also provides HD-ID support for Minn Kota® and MotorGuide® trolling motors with integrated transducers.
- Display Type: Color TFT LCD
- Screen Size: 4.3" diagonal
- Screen Resolution: 480 x 272
- Receiver Type: 5Hz internal GPS/GLONASS
- Included Cartography: US Coastal BlueChart g2
- Optional Cartography: LakeVü HD Ultra, BlueChart® g2, BlueChart g2 Vision
- Transmit Power: 500W (RMS)
- Maximum Depth: 2,300' (saltwater), 1,100' (freshwater) @ 77kHz
- Frequency: 50/200kHz plus 455/800kHz
- Transducer: GT20-TM transom mount included
- NMEA Interface: NMEA 0183
- Dimensions: 4":W x 6 5/8":H x 1 13/16":D
- Waterproof Rating: IPX7
- Warranty: One year
Type
Chartplotter/Sonar Combo
Cartography
US Coastal BlueChart g2
Diagonal Screen Size
4.3 Inches
Dimensions
4" Width x 6 5/8" Height x 1 13/16" Depth
Display Color
Color
Display Shape
Vertical
Display Type
Color TFT LCD
Frequency
50/200kHz
Maximum Depth
2300' (Fresh) 1100' (Salt)
Mount Type
Tilt & Swivel
Resolution
480 x 272
Sonar
Down Imaging
Specific Transducer
Transom Mount
Transmit Power
500 Watts (RMS)
Type
Chartplotter/Sonar Combo
Warranty
One Year
Waterproof
Waterproof
