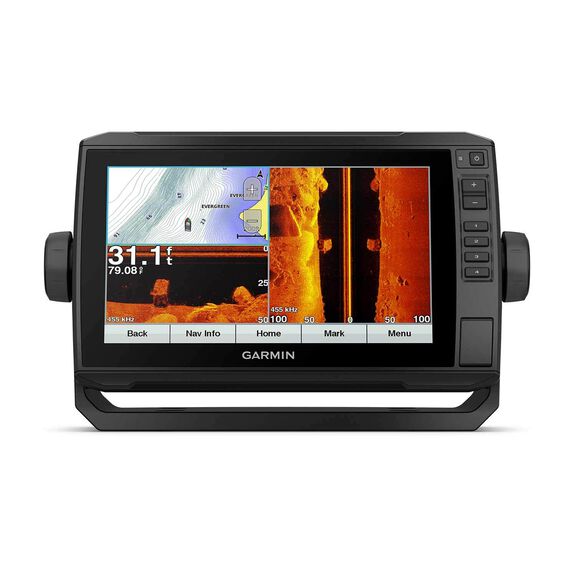

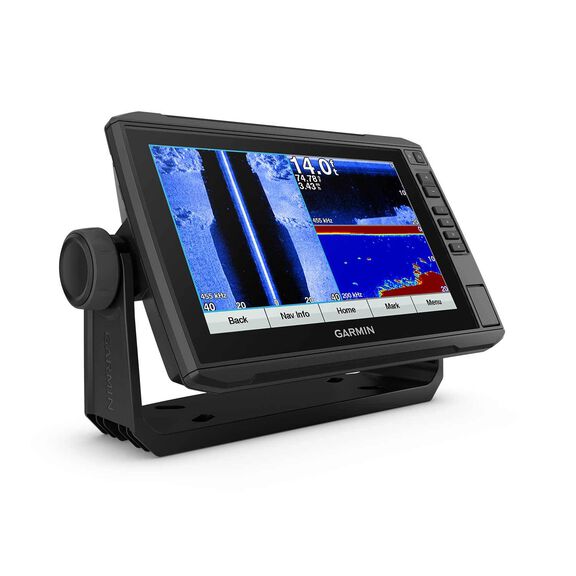

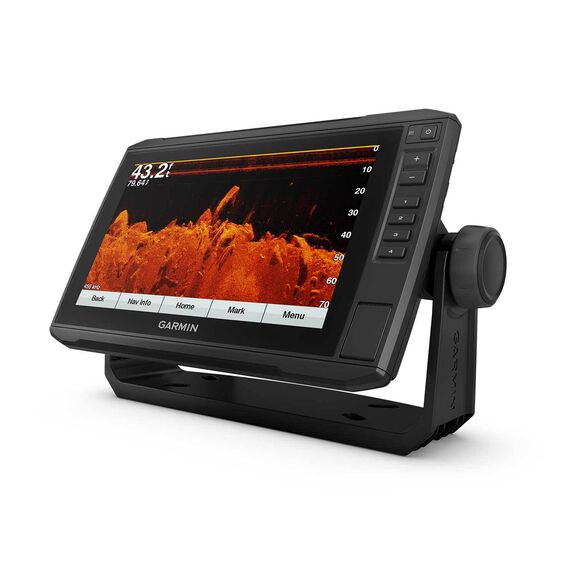

ECHOMAP™ Plus 93sv Fishfinder/Chartplotter Combo with CV52HW-TM Transducer and LakeVu Inland Charts

ECHOMAP™ Plus 93sv is a combo with some serious connections.

A 9" diagonal touchscreen with keypad-assist for when it's really wet, a transom mount transducer that dials in three kinds of sonar—high wide CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonar—with the breakthrough Connected Boat technology of Garmin's ActiveCaptain App.

Key Features

• Get connected with ActiveCaptain App: Garmin's free all-in-one ActiveCaptain mobile app allows you to manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your chartplotter, charts, maps and the community.
• Keep your charts up to date: Use the combo's built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, which allows you to update or purchase and download new charts
• Smart Notifications from your smartphone appear on the screen: ActiveCaptain also gives you access to smart notifications (when paired with a compatible mobile device), plus the ActiveCaptain community for marina and other points of interest details and boater reviews, Quickdraw Community data and more
• Clear Scanning Sonar Images: Garmin CHIRP traditional sonar, down-looking ClearVü and SideVü side-scanning sonar are combined into one transducer
• CHIRP ClearVü™ scanning sonar gives you a nearly photographic image of what’s below your boat
• CHIRP SideVü™ shows what lies off to the sides of your boat. Clearly see structure, submerged objects and fish
• CHIRP traditional sonar shows clear target separation and definition, because it puts even more energy onto the target than traditional sonar
• Includes LakeVü HD Charts: High-detail freshwater maps include more than 17,000 U.S. lakes, rivers and reservoirs, including more than 13,000 HD lakes with 1' contours. Excellent detail of underwater features, plus Shallow Water Shading so you can designate a minimum depth. Shows interstates, general roads and bridges, designated fishing areas, launching ramps, marinas and campgrounds. Garmin New Chart Guarantee
• Use Quickdraw Contours to create your own charts: Instantly create personalized fishing maps on-screen with 1' contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.
• SailAssist: SailAssist features include laylines, enhanced wind rose and heading and course-over-ground lines. See true and apparent wind angle and speed as well as set and drift and a glance. for sailboat racers, a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer.
• NMEA 2000 network support: Provides NMEA 2000 support for engine data, sensors, FUSION-LINK™ audio system, autopilots and more
• Easy to remove for security: When you're off the water, it's easy to keep your ECHOMAP Plus combo safe and secure because the cords plug directly into the mount; so it's easy to quickly install and remove your ECHOMAP Plus
• Includes 12-pin transducer with 20' cable: CV52HW-TM is ideal for mounting to a trolling motor due to its compact size, and is great for freshwater fishermen who want CHIRP traditional sonar and CHIRP ClearVü and CHIRP SideVü scanning sonar
• Frequency: CHIRP High Wide (150-240 kHz); ClearVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
• Transmit power: Traditional 250 W; ClearVü/SideVu 350 W
• Beamwidth: Traditional (24°-16°); ClearVü/SideVü (2.0° @ 455 kHz) & (1.0° @ 800 kHz)
• Maximum depth: Traditional: 800'; ClearVü: 250'; SideVü: 500'

What's in the Box

• ECHOMAP Plus 93sv with U.S. LakeVü HD
• CV52HW-TM transducer
• Power/data cable
• Tilt mount with quick release cradle
• Flush mount
• Protective cover
• Hardware
• Documentation

Transducer Options:

This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:
