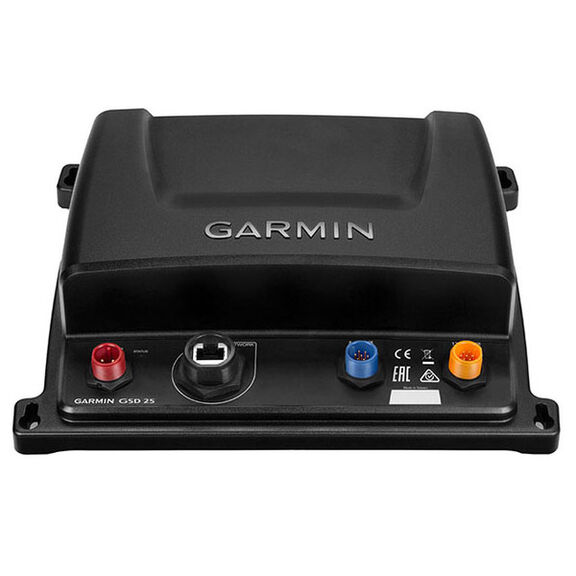

GSD™ 25 Premium Sonar Module

GSD™ 25 Premium Sonar Module

5 out of 5 Customer Rating
-
+
Availability
  • In Stock
Ships from supplier, typically 2-3 weeks.

Vendor Shipping Details

This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.

Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.

West Marine will email you when your order ships from the vendor.

Protect Your Purchase

Add extra coverage from the date of purchase beyond the manufacturer’s warranty. Details

What's Covered?

PLUS adds up to 2 more years of coverage beyond the Manufacturer's Warranty and offers extra coverage from the date of purchase throughout the extended term. PLUS includes:

  • Wear and Tear Coverage
  • Power Surge Protection
  • Exchange for products under $400
  • Onboard service on products over $750
  • Up to 5 years of total coverage

Your PLUS plan goes into effect with your purchase ‐ no registration required. Purchase your PLUS plan online, in stores or by calling 1 (800) 262-8464.

$109.49
$79.44
$949.99
This item is currently unavailable.
Enter your email address to be added to the waitlist.
Model # 16223828 Mfg # 010-01159-00
Truck Freight

Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.

Warning Hazard shipping
Item Can only Ship to Store

Premium remote network sonar solution.

The GSD 25 Premium Sonar Module is a remote network solution that provides outstanding fishfinding and bottom tracking capabilities.

Clearest scanning sonar images on the water: Adding CHIRP technology to ClearVü and SideVü scanning sonar further enhances the resolution, target separation and clarity of the sonar images of fish and structure that pass below and to the sides of your boat. The images sent to your compatible Garmin chartplotter have target details so clear and precise, you can actually distinguish between small and closely spaced fish at key fishing depths all the way down to 5,000 feet.

True dual-channel 1kW CHIRP:  CHIRP is the most sophisticated sonar technology available for use by the fishing and boating public. CHIRP is an acronym for Compressed High-Intensity Radiated Pulse. What it means to you is much better target resolution, clarity and crispness than any other sonar system. Having Garmin’s true dual 1kW CHIRP as your traditional sonar allows you to adjust CHIRP frequencies to low/medium, low/high, medium/high to further optimize your sonar performance.

This sonar is so unique that Garmin has developed their own proprietary transducers that are specially designed to work with this new sonar to provide the very best performance. Transducer sold separately.

Specifications

  • Frequency: Traditional: 50/200, 77/200, 83/200kHz, Single/Dual Channel CHIRP: 40-250kHz, SideVü/DownVü: CHIRP 455/800kHz and CHIRP 260/455kHz
  • Transmit Power: 1kW
  • Maximum Depth: 5,000'
  • Dimensions: 9 7/8"W x 7 5/8"L x 2 5/8"D
  • Data Interface: Ethernet
  • Transducer: Sold separately
  • Waterproof Rating: IPX7
  • Warranty: Two years

What's in the Box

  • GSD 25
  • Right-angle power cable (6')
  • Right-angle network cable (6')
  • Mounting hardware
  • Documentation

Transducer Options

This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:



Transducer Type:

CHIRP All-In-One

Reading(s) Transmit Power Max. Depth Material Model
GT50M-TM CHIRP/ClearVü/SideVu Transom Mount (12 pin)(Primary) Depth/Temp

500W CHIRP

300W CV/SV

1,500' Traditional 750' ClearVu;

500' SideVu

Plastic/Stainless Steel 17596388
GT50M-TH CHIRP/ClearVü/SideVü Thru-Hull (12 pin) (Primary) Depth/Temp

300W CHIRP

500W CV/SV

1,500' Traditional 750' ClearVu;

500' SideVu

Plastic/Stainless Steel 17596396
GT50M-THP CHIRP/ClearVü/SideVü Thru-Hull (12 pin)(Primary) Depth/Temp

300W CHIRP

500W CV/SV

1,500' Traditional 750' ClearVu;

500' SideVu

Plastic/Stainless Steel 17596404
GT51M-TH CHIRP/ClearVü/SideVüThru-Hull (12 pin)(Primary) Depth/Temp

600W CHIRP

500W CV/SV

1000' ClearVu;

750' SideVu

Plastic/Stainless Steel 17596420
GT51M-TM CHIRP/ClearVü/SideVu Transom Mount (12 pin)(Primary) Depth/Temp

600W CHIRP

500W CV/SV

1000' ClearVu;

750' SideVu

Plastic/Stainless Steel 17596412
GT51M-THP CHIRP/ClearVu/SideVu Thru-Hull (12 pin)(Primary) Depth/Temp

600W CHIRP

500W CV/SV

1000' ClearVu;

750' SideVu

Plastic/Stainless Steel 17596438
GT40-TM Traditional/ClearVU/SideVu Transom Mount (12 pin) Depth/Temp

500W Traditional

500W CV/SV

1,900' Traditional (900' Saltwater) 750' ClearVu;

500' SideVu

Plastic/Stainless Steel 17596347
GT41-TM Traditional/ClearVU/SideVu Transom Mount (12 pin) Depth/Temp

600W Traditional

500W CV/SV

1,500' Traditional 1000' ClearVu;

750' SideVu

Plastic/Stainless Steel 17596354
GT41-TH Traditional/ClearVu/SidVu Thru-Hull (12 pin) Depth/Temp

600W Traditional

500W CV/SV

1,500' Traditional 1000' ClearVu;

750' SideVu

Plastic/Stainless Steel 17596362
GT41-THP Traditional/ClearVu/SidVu Thru-Hull Pair (12 pin) Depth/Temp

600W Traditional

500 W CV/SV

1,500' Traditional 1000' ClearVu;

750' SideVu

Plastic/Stainless Steel 17596370
Transducer Type: CHIRP Reading(s) Transmit Power Max. Depth Material Model
GT20-TM Traditional/ClearVu Transom Mount (4 pin) Depth/Temp/Speed 500W 1,900' Traditional 750' ClearVu Plastic 17596289
GT20-TM Traditional/ClearVu Transom Mount (8 pin) Depth/Temp 500W 1,900' Traditional 750' ClearVu Plastic 17492372
GT21-TM Traditional/ClearVu Transom Mount (8 pin) Depth/Temp 600W Traditional 500W ClearVu 1,500' Traditional 1,000' ClearVu Plastic 17596297
GT21-TH Traditional/ClearVu Thru-Hull (8 pin) Depth/Temp 600W Traditional 500W ClearVu 1,500' Traditional 1,000' ClearVu Plastic/Stainless Steel 17596305



Dimensions 9.9" Width x 7.6" Height x 2.6" Depth
Frequency Traditional: 50/200 77/200 83/200 kHz , Single/Dual Channel CHIRP: 40-250 kHz , SideVu/DownVu: CHIRP 455/800 kHz and CHIRP 260/455 kHz
Maximum Depth 5000'
Mount Type Surface
Specific Transducer Sold Separately
Transmit Power 1000 Watts
Warranty Two Years
Waterproof Waterproof
