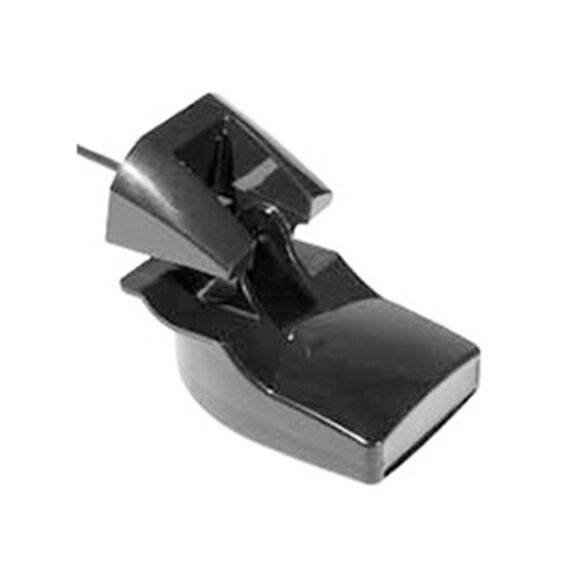

Transom Mount Dual Frequency Transducer

Transom Mount Dual Frequency Transducer

5 out of 5 Customer Rating
  • In Stock
Ships from supplier, typically 2-3 weeks.

Vendor Shipping Details

This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.

Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.

West Marine will email you when your order ships from the vendor.

This item is currently unavailable.
Enter your email address to be added to the waitlist.
Model # 13178330 Mfg # 010-10272-10
Truck Freight

Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.

Warning Hazard shipping
Item Can only Ship to Store

Replaces the dual frequency transducers included with many Garmin units.

The 500W 8-pin transducer has a maximum depth of 1,500'; an operating frequency of 50 and 200kHz; a beamwidth of 40° and 10°; and mounts on a 0° to 70° transom. Transducer kit comes with installation instructions. Compatible with Garmin GSD 24.

When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required. The 6-pin transducer, 010-10272-00, is preferred.


  • Style: Transom mount
  • Cable Length: 30'(6m)
  • Connector: 8-pin
  • Transom Angle: 0°-70°
  • Monitors: Depth/Temperature
  • Material: Plastic
  • Transmit Power: 500W (RMS)
  • Frequency: 50/200kHz
  • Max. Depth: 1,500'
  • Beamwidths: 40°/10°
Beam 10x40 Degrees
Deadrise Angle 0 to 70 Degree
Frequency 50/200kHz
Material Plastic
Maximum Depth 1500 Feet
Sonar Depth , Temperature
Transmit Power 500 Watts
Type Transom Mount
